Oil Furnaces
Legacy Line OBL Oil Furnace
Model: OBL
Product Line: Oil Furnaces - Legacy Line
AFUE Rating: Up to 86.6%
AFUE Range: 85 to 90.9% AFUE
Proposition 65 Product Warnings: 000-1 Cancer and Reproductive Harm
- Up to 86.6% AFUE
- Multi-speed blower
- Low-constant fan switch
- Even heat distribution
- High-performance Beckett burner
- Quieting flue silencer baffles
- Fully insulated cabinet walls
- Low Boy model for tight installations
- Barometric draft control
- Durable aluminized steel secondary heat exchanger
- 10-year parts and a lifetime heat exchanger limited warranty upon timely registration 1±
1To the original owner, when product is used in an owner-occupied residence, a 10-year parts limited warranty upon timely registration of your new equipment. Warranty period is 5 years if not registered within 90 days. Jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive a 10-year parts limited warranty. See warranty certificate for complete details.
±To the original owner, when product is used in an owner-occupied residence, a Lifetime heat exchanger parts limited warranty upon timely registration of your new equipment. Warranty period is reduced to 20-years (from Lifetime) on heat exchanger if not registered within 90 days. Jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive the extended registered heat exchanger parts limited warranty period. See warranty certificate for details.
PERFORMANCE
Energy Efficiency Up to 86.6% AFUE
CONTROLS
Controls Supported Thermidistat, thermostat
Draft Control Barometric
TECHNOLOGY
Capacity 77,000 - 154,000 BTUH
Blower Motor 4 - speed blower for precise airflow selection of heating or cooling operation
Heat Exchanger Stainless and aluminized steel
Burner Beckett or Riello
AESTHETICS
Profile Low Boy, Upflow
Construction 22 gauge steel
Paint Powder coated
Bryant reserves the right to discontinue or change any specification or design without prior notice or obligation.

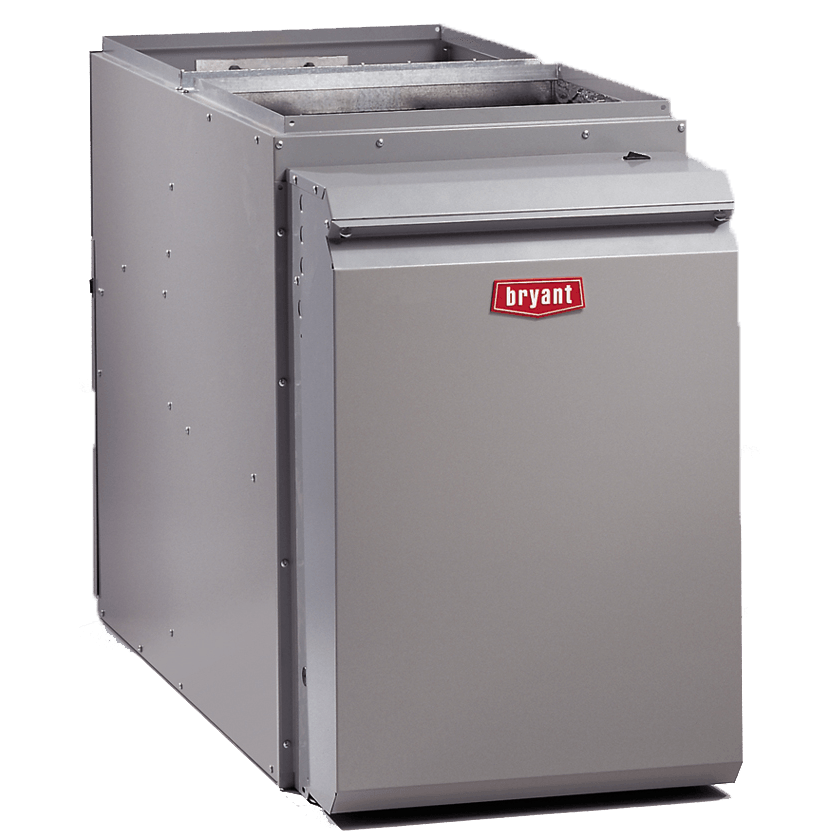

Legacy Line Oil Furnace
Model: CBL
Product Line: Oil Furnaces - Legacy Line
AFUE Rating: Up to 82.6%
AFUE Range: 80 to 84.9% AFUE
Proposition 65 Product Warnings: 000-1 Cancer and Reproductive Harm
- Up to 82.6% AFUE
- Multiple-speed blower
- Low-constant fan switch
- Even heat distribution
- High-performance Beckett burner
- Quieting flue silencer baffles
- Fully insulated cabinet walls
- Barometric draft control
- Low Boy model for tight installations
- Durable aluminized steel secondary heat exchanger
- 10-year parts and a lifetime heat exchanger limited warranty upon timely registration 1±
1To the original owner, when product is used in an owner-occupied residence, a 10-year parts limited warranty upon timely registration of your new equipment. Warranty period is 5 years if not registered within 90 days. Jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive a 10-year parts limited warranty. See warranty certificate for complete details.
±To the original owner, when product is used in an owner-occupied residence, a Lifetime heat exchanger parts limited warranty upon timely registration of your new equipment. Warranty period is reduced to 20-years (from Lifetime) on heat exchanger if not registered within 90 days. Jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive the extended registered heat exchanger parts limited warranty period. See warranty certificate for details.
PERFORMANCE
Energy Efficiency Up to 82.6% AFUE
CONTROLS
Controls Supported Thermidistat, thermostat
Draft Control Barometric
TECHNOLOGY
Capacity 70,000 - 154,000 BTUH
Blower Motor Direct-drive, adjustable speed
Heat Exchanger Stainless and aluminized steel
Burner Beckett
AESTHETICS
Profile Low Boy, Upflow
Construction 20 gauge steel
Paint Powder coated
Bryant reserves the right to discontinue or change any specification or design without prior notice or obligation.
Legacy Line Oil Furnace
Model: CBM
Product Line: Oil Furnaces - Legacy Line
AFUE Rating: Up to 82.4%
AFUE Range: 80 to 84.9% AFUE
Proposition 65 Product Warnings: 000-1 Cancer and Reproductive Harm
- Up to 82.4% AFUE
- Multiple-speed blower
- Low-constant fan switch
- Even heat distribution
- High-performance Beckett burner
- Quieting flue silencer baffles
- Fully insulated cabinet walls
- Barometric draft control
- Low Boy model for tight installations
- Durable aluminized steel secondary heat exchanger
- 10-year parts and a lifetime heat exchanger limited warranty upon timely registration 1±
1To the original owner, when product is used in an owner-occupied residence, a 10-year parts limited warranty upon timely registration of your new equipment. Warranty period is 5 years if not registered within 90 days. Jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive a 10-year parts limited warranty. See warranty certificate for complete details.
±To the original owner, when product is used in an owner-occupied residence, a Lifetime heat exchanger parts limited warranty upon timely registration of your new equipment. Warranty period is reduced to 20-years (from Lifetime) on heat exchanger if not registered within 90 days. Jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive the extended registered heat exchanger parts limited warranty period. See warranty certificate for details.
PERFORMANCE
Energy Efficiency Up to 82.4% AFUE
CONTROLS
Controls Supported Thermidistat, thermostat
Draft Control Barometric
TECHNOLOGY
Capacity 70,000 - 154,000 BTUH
Blower Motor Direct-drive, adjustable speed
Heat Exchanger Stainless and aluminized steel
Burner Beckett or Riello
AESTHETICS
Profile 4-way multipoise
Construction 20 gauge steel
Paint Powder coated
Bryant reserves the right to discontinue or change any specification or design without prior notice or obligation.

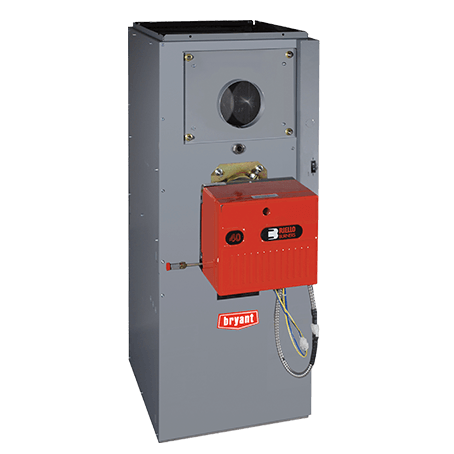

Legacy Line OBM Oil Furnace
Model: OBM
Product Line: Oil Furnaces - Legacy Line
AFUE Rating: Up to 86%
AFUE Range: 85 to 90.9% AFUE
Proposition 65 Product Warnings: 000-1 Cancer and Reproductive Harm
- Up to 86% AFUE
- Multi-speed blower
- Low-constant fan switch
- Even heat distribution
- High-performance Beckett burner
- Quieting flue silencer baffles
- Fully insulated cabinet walls
- Barometric draft control
- Multipoise model for tight installations
- Durable aluminized steel secondary heat exchanger
- 10-year parts and a lifetime heat exchanger limited warranty upon timely registration 1±
1To the original owner, when product is used in an owner-occupied residence, a 10-year parts limited warranty upon timely registration of your new equipment. Warranty period is 5 years if not registered within 90 days. Jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive a 10-year parts limited warranty. See warranty certificate for complete details.
±To the original owner, when product is used in an owner-occupied residence, a Lifetime heat exchanger parts limited warranty upon timely registration of your new equipment. Warranty period is reduced to 20-years (from Lifetime) on heat exchanger if not registered within 90 days. Jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive the extended registered heat exchanger parts limited warranty period. See warranty certificate for details.
PERFORMANCE
Energy Efficiency Up to 86% AFUE
CONTROLS
Controls Supported Thermidistat, thermostat
Draft Control Barometric
TECHNOLOGY
Capacity 77,000 - 154,000 BTUH
Blower Motor 4 - speed blower for precise airflow selection of heating or cooling operation
Heat Exchanger Stainless and aluminized steel
Burner Beckett or Riello
AESTHETICS
Profile 4-way multipoise
Construction 22 gauge steel
Paint Powder coated
Bryant reserves the right to discontinue or change any specification or design without prior notice or obligation.

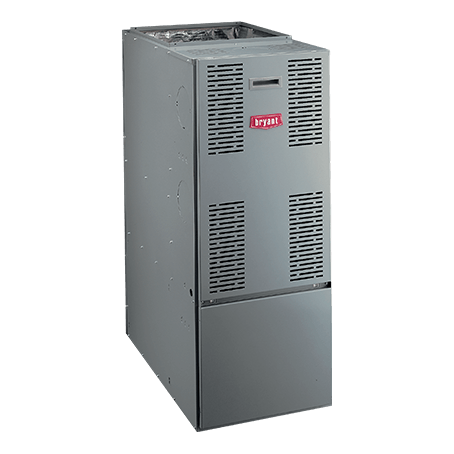

Preferred Series 80 Oil Furnace
Model: CVM
Product Line: Oil Furnaces - Preferred Series
AFUE Rating: Up to 85.7%
AFUE Range: 85 to 90.9% AFUE
Proposition 65 Product Warnings: 000-1 Cancer and Reproductive Harm
- Up to 85.7% AFUE
- Variable speed blower
- High-performance Riello burner
- Quieting flue silencer baffles
- Fully insulated cabinet walls
- Multipoise model for tight installations
- Barometric draft control
- Durable aluminized steel secondary heat exchanger
- 10-year parts and a lifetime heat exchanger limited warranty upon timely registration 1±
1To the original owner, when product is used in an owner-occupied residence, a 10-year parts limited warranty upon timely registration of your new equipment. Warranty period is 5 years if not registered within 90 days. Jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive a 10-year parts limited warranty. See warranty certificate for complete details.
±To the original owner, when product is used in an owner-occupied residence, a Lifetime heat exchanger parts limited warranty upon timely registration of your new equipment. Warranty period is reduced to 20-years (from Lifetime) on heat exchanger if not registered within 90 days. Jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive the extended registered heat exchanger parts limited warranty period. See warranty certificate for details.
PERFORMANCE
Energy Efficiency Up to 85.7% AFUE
CONTROLS
Controls Supported Thermidistat, thermostat
Draft Control Barometric
TECHNOLOGY
Capacity 70,000 - 154,000 BTUH
Blower Motor Variable speed, ECM
Heat Exchanger Stainless and aluminized steel
Burner Beckett
AESTHETICS
Profile 4-way multipoise
Construction 20 gauge steel
Paint Powder coated
Bryant reserves the right to discontinue or change any specification or design without prior notice or obligation.
Preferred Series OVL Oil Furnace
Model: OVL
Product Line: Oil Furnaces - Preferred Series
AFUE Rating: Up to 86.8%
AFUE Range: 85 to 90.9% AFUE
Proposition 65 Product Warnings: 000-1 Cancer and Reproductive Harm
- Up to 86.6% AFUE
- Multi-speed blower
- High-performance Riello burner
- Quieting flue silencer baffles
- Fully insulated cabinet walls
- Low Boy model for tight installations
- Barometric draft control
- Durable aluminized steel secondary heat exchanger
- 10-year parts and a lifetime heat exchanger limited warranty upon timely registration 1±
1To the original owner, when product is used in an owner-occupied residence, a 10-year parts limited warranty upon timely registration of your new equipment. Warranty period is 5 years if not registered within 90 days. Jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive a 10-year parts limited warranty. See warranty certificate for complete details.
±To the original owner, when product is used in an owner-occupied residence, a Lifetime heat exchanger parts limited warranty upon timely registration of your new equipment. Warranty period is reduced to 20-years (from Lifetime) on heat exchanger if not registered within 90 days. Jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive the extended registered heat exchanger parts limited warranty period. See warranty certificate for details.
PERFORMANCE
Energy Efficiency Up to 86.6% AFUE
CONTROLS
Controls Supported Thermidistat, thermostat
Draft Control Barometric
TECHNOLOGY
Capacity 77,000 - 154,000 BTUH
Blower Motor Variable speed, ECM
Heat Exchanger Stainless and aluminized steel
Burner Beckett or Riello
AESTHETICS
Profile Low Boy, Upflow
Construction 22 gauge steel
Paint Powder coated
Bryant reserves the right to discontinue or change any specification or design without prior notice or obligation.

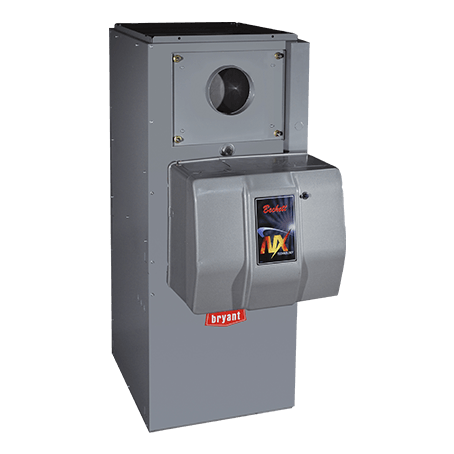

Preferred Series OVM Oil Furnace
Model: OVM
Product Line: Oil Furnaces - Preferred Series
AFUE Rating: Up to 86.6%
AFUE Range: 85 to 90.9% AFUE
Proposition 65 Product Warnings: 000-1 Cancer and Reproductive Harm
- Up to 86.6% AFUE
- Multi-speed blower
- High-performance Riello burner
- Quieting flue silencer baffles
- Fully insulated cabinet walls
- Multipoise model for tight installations
- Barometric draft control
- Durable aluminized steel secondary heat exchanger
- 10-year parts and a lifetime heat exchanger limited warranty upon timely registration 1±
1To the original owner, when product is used in an owner-occupied residence, a 10-year parts limited warranty upon timely registration of your new equipment. Warranty period is 5 years if not registered within 90 days. Jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive a 10-year parts limited warranty. See warranty certificate for complete details.
±To the original owner, when product is used in an owner-occupied residence, a Lifetime heat exchanger parts limited warranty upon timely registration of your new equipment. Warranty period is reduced to 20-years (from Lifetime) on heat exchanger if not registered within 90 days. Jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive the extended registered heat exchanger parts limited warranty period. See warranty certificate for details.
PERFORMANCE
Energy Efficiency Up to 86.6% AFUE
CONTROLS
Controls Supported Thermidistat, thermostat
Draft Control Barometric
TECHNOLOGY
Capacity 77,000 - 154,000 BTUH
Blower Motor ECM 2.3 variable speed high-efficiency motor
Heat Exchanger Stainless and aluminized steel
Burner Beckett
AESTHETICS
Profile 4-way multipoise
Construction 22 gauge steel
Paint Powder coated
Bryant reserves the right to discontinue or change any specification or design without prior notice or obligation.
Heat Pumps
Evolution® Heat Pump with Basepan Heater
Model: 538FR
- Product Line: Evolution® System Ductless
- Energy Star: All sizes qualified
- SEER Efficiency Range: 23+ SEER
- SEER Efficiency: Up to 30.5
- HSPF Efficiency Range: 10 to 11.9 HSPF
- HSPF Efficiency: Up to 10.3
- Sound Level Range: 59 to 59 Decibels
- Sound Level: As low as 53 decibels
- Purpose: Heating and cooling
- System Type: Single Zone
- Proposition 65 Product Warnings: 343824-2 Lead and Lead Compounds
100% heating capacity at 5° F (-15° C)
Heating capacity is 90% when temperatures fall as low as -22° F (-30° C)
Inverter Compressor
Up to 30.5 SEER cooling
Up to 10.3 HSPF heating efficiency
Select sizes are ENERGY STAR® certified based on indoor unit pairing
Available in 208/230V
- Sizes ranging from 09 to 18
- Quiet outdoor sound operation, as low as 53 decibels1
- Piping length up to 82 ft.
- Built-in basepan heater
- 10-year parts limited and 10-year compressor limited warranties to the original purchasing owner upon timely registration2
- Compatible unit: 619FB High Wall
1 Quietest size within each model group during most common cooling operating condition.
2 If properly registered within ninety (90) days after original installation, parts are warranted to the original purchaser for a period of 10 years. Otherwise, parts warranty is 5 years. For other applications a 7-year parts and 7-year compressor limited warranties apply. See warranty certificate for details.
EFFICIENCY MANAGEMENT
Energy Efficiency Up to 30.5 SEER/up to 15.8 EER/up to 10.3 HSPF
ENERGY STAR® Select sizes are ENERGY STAR® certified based on indoor unit pairing
COMFORT MANAGEMENT
Cooling Operating Range 0° F up to 129° F (-18° C up to -54° C)
Heating Operating Range -22° F up to 75° F (-30° C up to 24° C)
SOUND
Quiet Levels As low as 53 dB(A)1
CONVENIENCES
Notifications Advanced system diagnostics
TECHNOLOGY
Compressor Inverter, isolated for sound reduction
Protections Voltage, current
Capacity 0.75 - 1.5 tons
AESTHETICS
Construction Durable, heavy gauge galvanized steel
Paint Baked-on, powder paint
Line Length Up to 82 ft.
MODEL
Full Model Number 538FEQXXXRBGA
COMPATIBLE UNITS
Full Model Numbers (Single Zone System) 619FEQXXXBBGA High Wall (Gray), 619FEQXXXHBGA High Wall (White)
Bryant reserves the right to discontinue or change any specification or design without prior notice or obligation.
1 Quietest size within each model group during most common cooling operating condition.

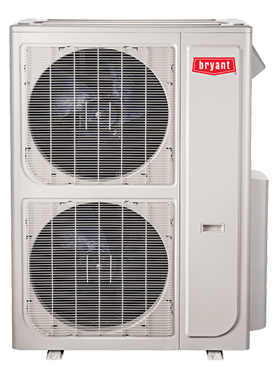

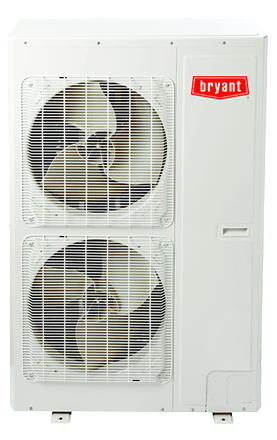

Evolution® Multi-Zone Heat Pump with Basepan Heater
Model: 538KR
- Product Line: Evolution® System Ductless
- Energy Star: Some sizes qualified
- SEER Efficiency Range: 19 to 22.9 SEER
- SEER Efficiency: Up to 22.0
- HSPF Efficiency Range: 10 to 11.9 HSPF
- HSPF Efficiency: Up to 10.2
- Sound Level Range: 59 to 59 Decibels
- Sound Level: As low as 56 decibels
- Purpose: Heating and cooling
- System Type: Multi-Zone
- Proposition 65 Product Warnings: 343824-2 Lead and Lead Compounds
- Inverter Compressor
- Up to 22.0 SEER cooling efficiency
- Up to 10.2 HSPF heating efficiency
- Select sizes are ENERGY STAR® certified based on indoor unit combinations
- Available in 208/230V
- Sizes ranging from 18 to 56
- Built-in basepan heater
- Total piping length from 66 ft. to 476 ft. depending on unit size
- Connects two to nine indoor units (zones) to a single outdoor unit
- Multiple style indoor units, Ducted or Ductless (Evolution® System)
- Quiet outdoor sound operation, as low as 56 decibels1
- System diagnostics
- 10-year parts limited and 10-year compressor limited warranties to the original purchasing owner upon timely registration2
- Compatible units: 619FB High Wall, 619KB High Wall, 619KC Cassette, 619KD Ducted, 619KF Floor Console
- Optional Features
- Branch Boxes (required for sizes 48 & 56)
1 Quietest size within each model group during most common cooling operating condition.
2 If properly registered within ninety (90) days after original installation, parts are warranted to the original purchaser for a period of 10 years. Otherwise, parts warranty is 5 years. For other applications a 7-year parts and 7-year compressor limited warranties apply. See warranty certificate for details.
EFFICIENCY MANAGEMENT
Energy Efficiency Up to 22.0 SEER/up to 12.5 EER/up to 10.2 HSPF
ENERGY STAR® Select sizes are ENERGY STAR® certified based on indoor unit combinations
COMFORT MANAGEMENT
Cooling Operating Range 0° F up to 119° F (-18° C up to 48° C)
Heating Operating Range -4° F up to 75° F (-20° C up to 24° C)
SOUND
Quiet Levels As low as 56 dB(A)1
CONVENIENCES
Notifications Advanced system diagnostics
TECHNOLOGY
Compressor Inverter, isolated for sound reduction
Protections Voltage, current
Capacity 1.5 - 4.6 tons
AESTHETICS
Construction Durable, heavy gauge galvanized steel
Paint Baked-on, powder paint
Line Length Up to 476 ft.
MODEL
Full Model Number 538KEQXXXRXGA
COMPATIBLE UNITS
Full Model Numbers (Multi-Zone System) 619FEQXXXBBGA High Wall (Gray), 619FEQXXXHBGA High Wall (White), 619KEQXXXBBGA High Wall, 619KEQXXXDBGA Ducted, 619KEQXXXFBGA Floor Console, 619KEQXXXCBGA Cassette
Bryant reserves the right to discontinue or change any specification or design without prior notice or obligation.
1 Quietest size within each model group during most common cooling operating condition.
Evolution® Single-Stage Heat Pump
Model: 285BNH
- Product Line: Heat Pumps - Evolution Series
- Energy Star: All sizes qualified
- SEER Efficiency Range: 13 to 15.9 SEER
- SEER Efficiency: up to 15.5
- HSPF Efficiency Range: 9 to 9.9 HSPF
- HSPF Efficiency: up to 9.5
- Compressor Technology: Single-Stage
- Noise Level Range: 60 to 69 Decibels
- Noise Level: as low as 68
- Proposition 65 Product Warnings: 343824-2 Lead and Lead Compounds
- Enjoy cool, summer comfort with up to 15.5 SEER/12.5 EER efficiency
- Take advantage of efficient electric heating well into the winter months with up to 9.5 HSPF efficiency
- Sound as low as 68 dB
- Enjoy Wi-Fi®± remote access capability to allow complete programming and change control from anywhere with the Evolution® Connex™ control for ultimate performance
- AeroQuiet SystemTM
- DuraGuard™ Plus protection system
- Environmentally-sound Puron® refrigerant
- 10-year parts limited warranty upon registration1
1To the original owner, when product is used in a residence, a 10-year parts limited warranty upon timely registration of your new equipment. Warranty period is 5 years if not registered within 90 days. Jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive a 10-year parts limited warranty. See warranty certificate for complete details.
±Wi-Fi® is a registered trademark of the Wi-Fi Alliance Corporation.
EFFICIENCY MANAGEMENT
Energy Efficiency Up to 15.5 SEER/12.5 EER cooling; Up to 9.5 HSPF heating
ENERGY STAR® Meets ENERGY STAR® guidelines for high efficiency in all models/sizes
Hybrid Heat® system capable Allows gas furnace/heat pump system combinations for best winter heating efficiencies
SOUND
Quiet levels During lowest capacity cooling operating condition: 68 dB
AeroQuietTM System II design Pressure equalizer valve, compressor sound blanket; quiet mount split post compressor grommets, forward-swept fan blade
CONVENIENCES
Notifications Maintenance reminders and service notices through the advanced system diagnostics of the Evolution Connex control
TECHNOLOGY
Compressor Single-stage scroll
Refrigerant Puron® refrigerant
Compatibility Designed for best efficiencies when part of Evolution system
Protections High pressure switch, loss of charge switch and filter drier
Diagnostics Enhanced diagnostics with Evolution control
Capacity 2-4 tons
AESTHETICS
Design Attractive DuraGuard™ Plus system
Construction Durable, sheet metal construction
Paint Baked-on, complete outer coverage, powder paint
*Bryant reserves the right to discontinue or change any specification or design without prior notice or obligation.
Evolution™ 2-Stage Coastal Heat Pump
Model: 286BNC
- Product Line: Heat Pumps - Evolution Series
- Energy Star® Qualified: All sizes qualified
- SEER Range: 16 to 19.9 SEER
- SEER Efficiency: up to 17
- HSPF Efficiency Range: 9 to 9.9 HSPF
- HSPF Efficiency: up to 9.5
- Compressor Type: Two-Stage
- Noise Level Range: 60 to 69 Decibels
- Noise Level: as low as 68
- Proposition 65 Product Warnings: 343824-2 Lead and Lead Compounds
- Enjoy cool, summer comfort with up to 17 SEER/13.5 EER efficiency
- Take advantage of efficient electric heating well into the winter months with up to 9.5 HSPF efficiency
- Two-stage operation allows longer, more consistent comfort cycles on low stage for savings and comfort
- Enhanced summer dehumidification through two-stage operation
- Sound as low as 68 dB
- Enjoy Wi-Fi®± remote access capability to allow complete programming and change control from anywhere with the Evolution™ Connex™ control for ultimate performance
- AeroQuiet SystemTM design
- DuraGuard™ Plus protection system
- Coastal design unit offers added protection against corrosive salt air
- Environmentally-sound Puron® refrigerant
- 10-year parts limited warranty upon registration1
- 5-year coastal corosion parts limited warranty2
1To the original owner, when product is used in a residence, a 10-year parts limited warranty upon timely registration of your new equipment. Warranty period is 5 years if not registered within 90 days. Jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive a 10-year parts limited warranty. See warranty certificate for complete details.
2To the original owner, Bryant model 286BNC is covered by a 5-year seacoast corrosion limited warranty, as well as a 10-year parts limited warranty upon timely registration. The parts limited warranty period is five years if not registered within 90 days of installation. Jurisdictions where warranty benefi ts cannot be conditioned on registration will receive a 10-year parts limited warranty period. See warranty certicate at Bryant.com for complete details and restrictions
±Wi-Fi® is a registered trademark of the Wi-Fi Alliance Corporation.
EFFICIENCY MANAGEMENT
Energy Efficiency Up to 17 SEER/13.5 EER cooling; Up to 9.5 HSPF heating
ENERGY STAR® Meets ENERGY STAR® guidelines for high efficiency in all models/sizes
Cooling and heating stages Two-stage operation for greater efficiency
Hybrid Heat® system capable Allows gas furnace/heat pump system combinations for best winter heating efficiencies
COMFORT MANAGEMENT
Cooling 2-stage operation for longer low cycle cooling to minimize temperature fluctuation
Dehumidification Better humidity management from 2-stage units when managed by Evolution Connex™ control
SOUND
Quiet levels During lowest capacity cooling operating condition: 68 dB
AeroQuietTM System II design Pressure equalizer valve, compressor sound blanket; quiet mount split post compressor grommets, forward-swept fan blade
CONVENIENCES
Notifications Maintenance reminders and service notices through the advanced system diagnostics of the Evolution Connex control
TECHNOLOGY
Compressor 2-stage scroll
Refrigerant Puron® refrigerant
Compatibility Designed for best efficiencies when part of Evolution system
Protections High pressure switch, loss of charge switch and filter drier
Coastal Coastguard™ added protection: corrosion-resistant fin epoxy phenolic thermoset coating; 100% paint coverage on outer casing
Diagnostics Enhanced diagnostics with Evolution control
Capacity 2-5 tons
AESTHETICS
Design Attractive DuraGuard™ Plus system
Construction Durable, sheet metal construction
Paint Baked-on, complete outer coverage, powder paint
*Bryant reserves the right to discontinue or change any specification or design without prior notice or obligation.
Evolution™ 2-Stage Heat Pump
Model: 286B
- Product Line: Heat Pumps - Evolution Series
- Energy Star® Qualified: All sizes qualified
- SEER Range: 16 to 19.9 SEER
- SEER Efficiency: up to 17
- HSPF Efficiency Range: 9 to 9.9 HSPF
- HSPF Efficiency: up to 9.5
- Compressor Type: Two-Stage
- Noise Level Range: 60 to 69 Decibels
- Noise Level: as low as 68
- Proposition 65 Product Warnings: 343824-2 Lead and Lead Compounds
- Enjoy cool, summer comfort with up to 17 SEER/9.5 EER efficiency
- Take advantage of efficient electric heating well into the winter months with up to 9.5 HSPF efficiency
- Two-stage operation allows longer, more consistent comfort cycles on low stage for savings and comfort
- Enhanced summer dehumidification through two-stage operation
- Sound as low as 68 dB
- Enjoy Wi-Fi®± remote access capability to allow complete programming and change control from anywhere with the Evolution™ ConnexTM control for ultimate performance
- AeroQuiet SystemTM design
- DuraGuard™ Plus protection system
- Environmentally-sound Puron® refrigerant
- 10-year parts limited warranty upon registration1
1To the original owner, when product is used in a residence, a 10-year parts limited warranty upon timely registration of your new equipment. Warranty period is 5 years if not registered within 90 days. Jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive a 10-year parts limited warranty. See warranty certificate for complete details.
±Wi-Fi® is a registered trademark of the Wi-Fi Alliance Corporation.
EFFICIENCY MANAGEMENT
Energy Efficiency Up to 17 SEER/13.5 EER cooling; Up to 9.5 HSPF heating
ENERGY STAR® Meets ENERGY STAR® guidelines for high efficiency in all models/sizes
Cooling and heating stages Two-stage operation for greater efficiency
Hybrid Heat® system capable Allows gas furnace/heat pump system combinations for best winter heating efficiencies
COMFORT MANAGEMENT
Cooling 2-stage operation for longer low cycle cooling to minimize temperature fluctuation
Dehumidification Better humidity management from 2-stage units when managed by Evolution ConnexTM control
SOUND
Quiet levels During lowest capacity cooling operating condition: 68 dB
AeroQuietTM System II design Pressure equalizer valve, compressor sound blanket; quiet mount split post compressor grommets, forward-swept fan blade
CONVENIENCES
Notifications Maintenance reminders and service notices through the advanced system diagnostics of the Evolution Connex control
TECHNOLOGY
Compressor 2-stage scroll
Refrigerant Puron® refrigerant
Compatibility Designed for best efficiencies when part of Evolution system
Protections High pressure switch, loss of charge switch and filter drier
Diagnostics Enhanced diagnostics with Evolution control
Capacity 2-5 tons
AESTHETICS
Design Attractive DuraGuard™ Plus system
Construction Durable, sheet metal construction
Paint Baked-on, complete outer coverage, powder paint
*Bryant reserves the right to discontinue or change any specification or design without prior notice or obligation.

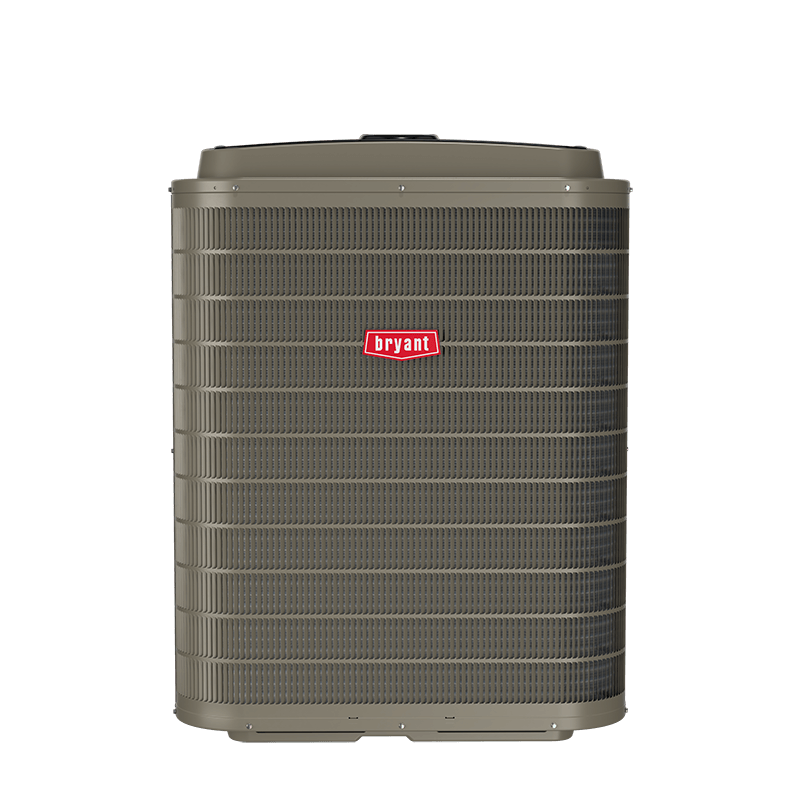

EVOLUTION™ EXTREME 24 VARIABLE-SPEED HEAT PUMP
Model: 284A
- Product Line: Heat Pumps - Evolution Series
- Energy Star® Qualified: All sizes qualified
- SEER Range: 20+ SEER
- SEER Efficiency: up to 24
- HSPF Efficiency Range: 10+ HSPF
- HSPF Efficiency: up to 13.0
- Compressor Type: Variable-Speed
- Noise Level Range: 50 to 59 Decibels
- Noise Level: as low as 58
- Proposition 65 Product Warnings: 343824-2 Lead and Lead Compounds
- Evolution™ air purifier included with purchase1
- Up to 50% quieter than our nearest competitor2
- Quiet Mode feature enables homeowners to cap sound levels at 69 dBA
- Extreme humidity control - Can remove up to 400% more moisture than standard systems3
- True variable-speed operation with longer, lower speed cycles to give you more energy savings and optimal temperature management
- Over-the-air software update capabilities
- Bluetooth® connectivity for enhanced service & diagnostics
- Senses operating conditions and adjusts to enhance system reliability
- Excellent performance with zoned systems
- Uses non-ozone depleting Puron® refrigerant
- DuraGuard™ Plus protection for lasting durability against the elements
- 10-year parts limited warranty upon registration4
- 10-year unit replacement limited warranty5
1 Limited time offer. Terms apply. See your participating dealer for details.
2 Depending on model combination. Based on laboratory testing of Bryant's Evolution 26 air conditioner models by Bryant engineers in Fall 2019 and AHRI sound level data for competitors’ variable-speed outdoor units, published as of December 2019.
3 Based on Bryant testing under simulated “worst case” conditions, as compared to a single-stage 13.0 SEER unit.
4 To the original owner, when product is used in a residence, a 10-year parts limited warranty upon timely registration of your new equipment. Warranty period is 5 years if not registered within 90 days. Jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive a 10-year parts limited warranty. See warranty certificate for complete details
5 10-year unit replacement limited warranty for compressor failures only, to original purchaser with timely registration, except where restricted by jurisdiction. See limited warranty certificate for details and restrictions.
Bluetooth is a registered trademark of Bluetooth SIG, Inc.
EFFICIENCY MANAGEMENT
Energy Efficiency Up to 24 SEER/ 15 EER/ Up to 13 HSPF
ENERGY STAR® Recognized as the Most Efficient of ENERGY STAR® 2020
Cooling and heating stages True variable-speed capability for load matching performance and exceptional energy efficiency
Hybrid Heat® system capable Allows gas furnace/heat pump system combinations for best winter heating efficiencies
COMFORT MANAGEMENT
Cooling/Heating Best levels of Bryant comfort control to minimize temperature fluctuation
Dehumidification Optimal summer humidity management through low stage operation when managed by Evolution Connex control
SOUND
Quiet levels 51 dB during lowest capacity cooling operating condition
AeroQuiet™ System II design Compressor sound blanket; quiet mount split post compressor grommets, forward-swept fan blade
Startup Soft start and smooth ramp up
CONVENIENCES
Notifications Maintenance reminders and service notices through the advanced system diagnostics of the Evolution Connex control
TECHNOLOGY
Compressor Variable-speed scroll with as wide as 25-100% capacity range in 1% increments
Control Inverter driven compressor managed by Evolution Connex control
Refrigerant Puron® refrigerant
Compatibility Designed for best efficiencies when part of Evolution system with variable-speed blower on indoor furnace or fan coil
Protections High pressure switch, suction pressure transducer, multiple temperature sensors and filter drier
Diagnostics Enhanced diagnostics with Evolution control
Capacity 2-5 tons
AESTHETICS
Protection Attractive DuraGuard™ Plus system
Construction Durable, sheet metal construction
Paint Baked-on, complete outer coverage, powder paint
Bryant reserves the right to discontinue or change any specification or design without prior notice or obligation.

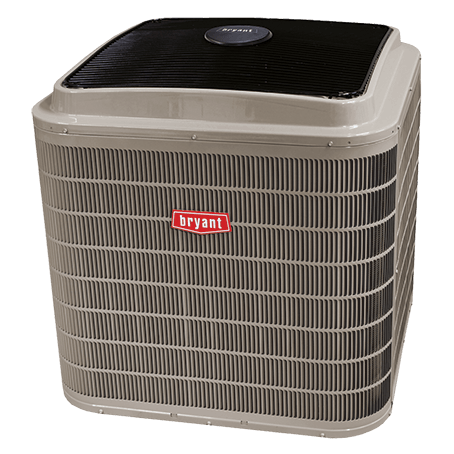

Evolution™ Extreme Variable-Speed
Model: 280A
- Product Line: Heat Pumps - Evolution Series
- Energy Star® Qualified: All sizes qualified
- SEER Range: 20+ SEER
- SEER Efficiency: up to 20.5
- HSPF Efficiency Range: 10+ HSPF
- HSPF Efficiency: up to 13.0
- Compressor Type: Variable-Speed
- Noise Level Range: 50 to 59 Decibels
- Noise Level: as low as 58
- Proposition 65 Product Warnings: 343824-2 Lead and Lead Compounds
- Enjoy cool, summer comfort with up to 20.5 SEER/16 EER efficiency
- Take advantage of efficient electric heating well into the winter months with up to 13 HSPF efficiency
- Optimal dehumidification capability with the Evolution Connex™ control
- True variable-speed operation with longer, lower speed cycles to give you more energy savings and optimal temperature management
- Exceptionally quiet operation in low speeds down to 58 dB in cooling mode and as low as 62 dB in heating mode
- Senses operating conditions and adjusts to enhance system reliability
- Excellent performance with zoned systems
- Uses non-ozone depleting Puron® refrigerant
- Sheet metal construction with baked-on, complete outer paint coverage for lasting durability against the elements
- Attractive, louvered cabinet protects the coil against physical damage
- 10-year parts limited warranty upon registration1
1 To the original owner, when product is used in a residence, a 10-year parts limited warranty upon timely registration of your new equipment. Warranty period is 5 years if not registered within 90 days. Jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive a 10-year parts limited warranty. See warranty certificate for complete details.
EFFICIENCY MANAGEMENT
Energy Efficiency Up to 20.5 SEER/16 EER Up to 13 HSPF
ENERGY STAR® Recognized as the Most Efficient of ENERGY STAR® 2019
Cooling and heating stages True variable-speed capability for load matching performance and exceptional energy efficiency
Hybrid Heat® system capable Allows gas furnace/heat pump system combinations for best winter heating efficiencies
COMFORT MANAGEMENT
Cooling/Heating Best levels of Bryant comfort control to minimize temperature fluctuation
Dehumidification Optimal summer humidity management through low stage operation when managed by Evolution Connex control
SOUND
Quiet levels 58 dB during lowest capacity cooling operating condition
AeroQuiet™ System II design Compressor sound blanket; quiet mount split post compressor grommets, forward-swept fan blade
Startup Soft start and smooth ramp up
CONVENIENCES
Notifications Maintenance reminders and service notices through the advanced system diagnostics of the Evolution Connex control
TECHNOLOGY
Compressor Variable-speed scroll with as wide as 40-100% capacity range in 1% increments
Control Inverter driven compressor managed by Evolution Connex control
Refrigerant Puron® refrigerant
Compatibility Designed for best efficiencies when part of Evolution system with variable-speed blower on indoor furnace or fan coil
Protections High pressure switch, suction pressure transducer, multiple temperature sensors and filter drier
Diagnostics Enhanced diagnostics with Evolution control
Capacity 2-5 tons
AESTHETICS
Protection Attractive DuraGuard™ Plus system
Construction Durable, sheet metal construction
Paint Baked-on, complete outer coverage, powder paint
*Bryant reserves the right to discontinue or change any specification or design without prior notice or obligation.

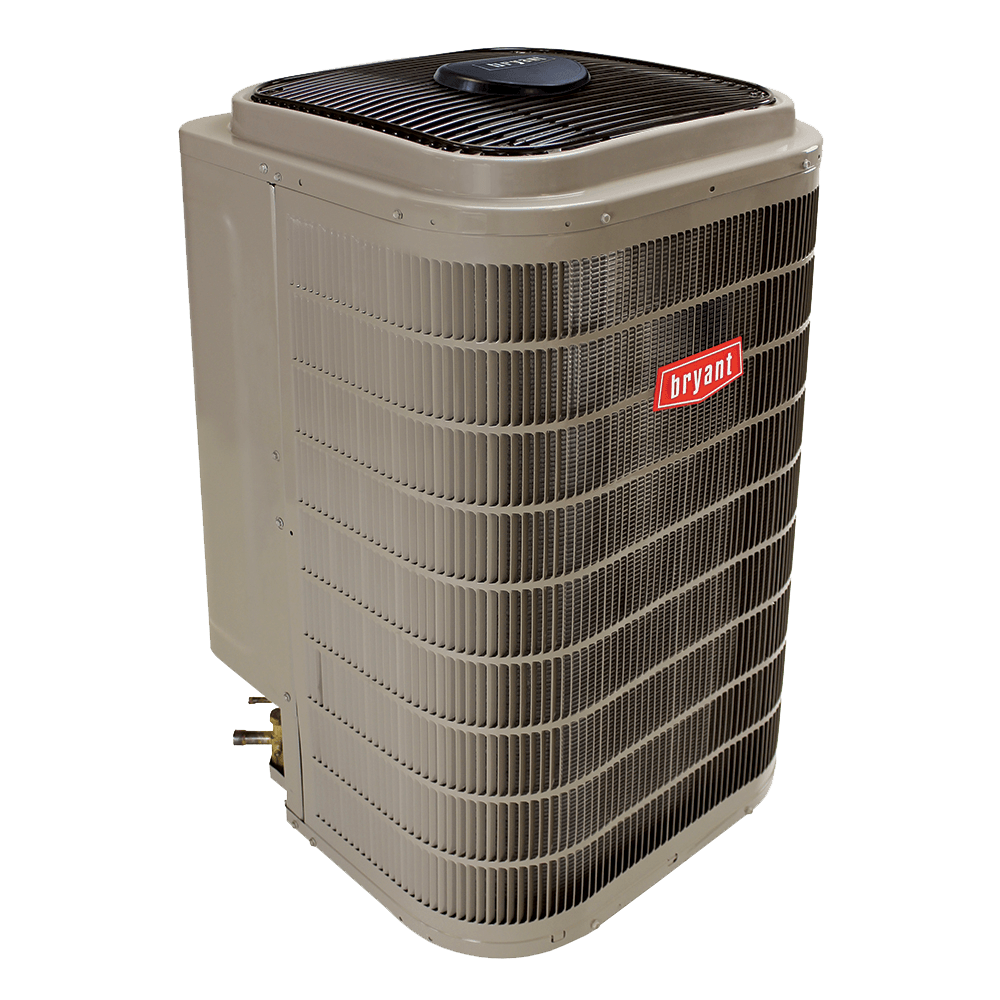

Evolution™ Variable-Speed Heat Pump
Model: 288BNV
- Product Line: Heat Pumps - Evolution Series
- Energy Star® Qualified: Some sizes qualified
- SEER Range: 16 to 19.9 SEER
- SEER Efficiency: up to 19
- HSPF Efficiency Range: 10+ HSPF
- HSPF Efficiency: up to 11
- Compressor Type: Variable-Speed
- Noise Level Range: 50 to 59 Decibels
- Noise Level: as low as 55
- Proposition 65 Product Warnings: 343824-2 Lead and Lead Compounds
- Enjoy cool, summer comfort with up to 19 SEER/12.5 EER efficiency
- Take advantage of efficient electric heating well into the winter months with up to 11 HSPF efficiency
- Optimal dehumidification capability with the Evolution ConnexTM control
- 5 stages of variable-speed operation with longer, lower stage cycles to give you more energy savings and better temperature management
- Exceptionally quiet operation in low speeds down to 55 decibels
- Soft start and smooth ramp up to operating speeds
- Senses operating conditions and adjusts to enhance system reliability
- Excellent performance with zoned systems
- Bryant's smallest ducted, variable-speed heat pump can fit discreetly into your landscape
- Uses non-ozone depleting Puron® refrigerant
- Sheet metal construction with baked-on, complete outer paint coverage for lasting durability against the elements
- Attractive, louvered cabinet protects the coil against physical damage
- 10-year parts limited warranty upon registration1
1To the original owner, when product is used in a residence, a 10-year parts limited warranty upon timely registration of your new equipment. Warranty period is 5 years if not registered within 90 days. Jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive a 10-year parts limited warranty. See warranty certificate for complete details.
EFFICIENCY MANAGEMENT
Energy Efficiency Up to 19 SEER/12.5 EER; Up to 11 HSPF
ENERGY STAR® Meets ENERGY STAR® guidelines for high efficiency in select sizes
Cooling and heating stages 5-stages for variable-speed operation for load matching performance
Hybrid Heat® system capable Allows gas furnace/heat pump system combinations for best winter heating efficiencies
COMFORT MANAGEMENT
Cooling Excellent levels of Bryant comfort control to minimize temperature fluctuation
Dehumidification Optimal summer humidity management through low stage operation when managed by Evolution Connex control
SOUND
Quiet levels 55 dB during lowest capacity cooling operating condition
AeroQuietTM System II design Pressure equalizer valve, compressor sound blanket; quiet mount split post compressor grommets, forward-swept fan blade
Startup Soft start and smooth ramp up
CONVENIENCES
Notifications Maintenance reminders and service notices through the advanced system diagnostics of the Evolution Connex control
TECHNOLOGY
Compressor 5-stage rotary with as wide as 25-100% capacity range
Control Inverter driven compressor and fan motor managed by Evolution Connex control
Refrigerant Puron® refrigerant
Compatibility Designed for best efficiencies when part of Evolution system but compatible with 2-stage thermostats and suitable indoor products for 2-stage operation and option to step up to full Evolution system at later time
Protections High pressure switch, suction pressure transducer, multiple temperature sensors and filter drier
Diagnostics Enhanced diagnostics with Evolution control
Capacity 2-4 tons
AESTHETICS
Design Attractive DuraGuard™ Plus system
Construction Durable, sheet metal construction
Paint Baked-on, complete outer coverage, powder paint
*Bryant reserves the right to discontinue or change any specification or design without prior notice or obligation.
Legacy Line™ Heat Pump
Model: DAQMA
- Product Line: Ductless systems – legacy series
- Energy Star: Not qualified
- SEER Efficiency Range: 15 to 18.9 SEER
- SEER Efficiency: up to 15.0
- HSPF Efficiency Range: 8 to 8.9 HSPF
- HSPF Efficiency: up to 8.2
- Sound Level Range: 59 to 59 Decibels
- Sound Level: As low as 57 decibels
- Purpose: Heating and cooling
- System Type: Single Zone
- Proposition 65 Product Warnings: 343824-2 Lead and Lead Compounds
- Inverter Compressor
- 15.0 SEER cooling efficiency
- 8.2 HSPF heating efficiency
- Available in 115V and 208/230V
- Sizes ranging from 9 to 22
- Piping length 65-98 ft. depending on unit capacity
- Quiet outdoor sound operation, as low as 57 decibels1
- System diagnostics
- 10-year parts limited and 10-year compressor limited warranties to the original purchasing owner upon timely registration2
- Compatible unit: DHQMA High Wall
1 Quietest size within each model group during most common cooling operating condition.
2 If properly registered within ninety (90) days after original installation, parts are warranted to the original purchaser for a period of 10 years. Otherwise, parts warranty is 5 years. For other applications a 7-year parts and 7-year compressor limited warranties apply. See warranty certificate for details.
EFFICIENCY MANAGEMENT
Energy Efficiency Up to 15.0 SEER/up to 10.5 EER/8.2 HSPF
COMFORT MANAGEMENT
Cooling Outdoor range operates from 14° F up to 115° F (-10° C up to 46° C)
Heating Outdoor range operates from 5° F up to 75° F (-15° C up to 24° C)
SOUND
Quiet Levels As low as 57 dB(A)1
CONVENIENCES
Notifications Advanced system diagnostics
TECHNOLOGY
Compressor Inverter, isolated for sound reduction
Protections Voltage, current, high pressure, loss of charge
Capacity 0.75 - 1.8 tons
AESTHETICS
Construction Durable, heavy gauge galvanized steel
Paint Baked-on, powder paint
Line Length Up to 98 ft.
MODEL
Full Model Numbers DAQMA-SXXX-1AAA, DAQMA-SXXX-3AAA
COMPATIBLE UNIT
Full Model Numbers DHQMA-SXXX-1AAA High Wall, DHQMA-SXXX-3AAA High Wall
Bryant reserves the right to discontinue or change any specification or design without prior notice or obligation.
1 Quietest size within each model group during most common cooling operating condition.
Legacy™ Single-Stage Heat Pump
Model: 214D
- Product Line: Heat Pumps - Legacy Line
- Energy Star® Qualified: Not qualified
- SEER Efficiency Range: 13 to 15.9 SEER
- SEER Range: 13 to 15.9 SEER
- SEER Efficiency: 14
- HSPF Efficiency Range: 8 to 8.9 HSPF
- HSPF Efficiency: 8.2
- Compressor Type: Single-Stage
- Noise Level Range: 60 to 69 Decibels
- Noise Level: as low as 69
- Proposition 65 Product Warnings: 343824-2 Lead and Lead Compounds
- Enjoy cool, summer comfort with 14 SEER/11.5 EER efficiency
- Take advantage of efficient electric heating well into the winter months with 8.2 HSPF efficiency
- Sound as low as 69 dB (quiet as a vacuum)
- Enjoy Wi-Fi®± remote access capability to allow complete programming and change control from anywhere with the Bryant® Housewise™ thermostat
- DuraGuard™ protection system
- Environmentally-sound Puron® refrigerant
- 10-year parts limited warranty upon registration1
1To the original owner, when product is used in a residence, a 10-year parts limited warranty upon timely registration of your new equipment. Warranty period is 5 years if not registered within 90 days. Jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive a 10-year parts limited warranty. See warranty certificate for complete details.
±Wi-Fi® is a registered trademark of the Wi-Fi Alliance Corporation.
EFFICIENCY MANAGEMENT
Energy Efficiency 14 SEER/11.5 EER cooling; 8.2 HSPF heating
Hybrid Heat® system capable Allows gas furnace/heat pump system combinations for best winter heating efficiencies
SOUND
Quiet levels During lowest capacity cooling operating condition: 69 dB
CONVENIENCES
Remote access Manage your system from afar with remote access when paired with the Bryant Housewise Wi-Fi® thermostat
Reminders Automatic maintenance reminders and service alerts with the Bryant Housewise thermostat
TECHNOLOGY
Compressor Single-stage scroll
Refrigerant Puron® refrigerant
Protections High pressure switch, loss of charge switch and filter drier
Controls supported Bryant Housewise Wi-Fi thermostat and other Preferred series thermostats
Capacity 1.5-5 tons
AESTHETICS
Design Attractive DuraGuard™ system
Construction Durable, sheet metal construction
Paint Baked-on, complete outer coverage, powder paint
*Bryant reserves the right to discontinue or change any specification or design without prior notice or obligation.

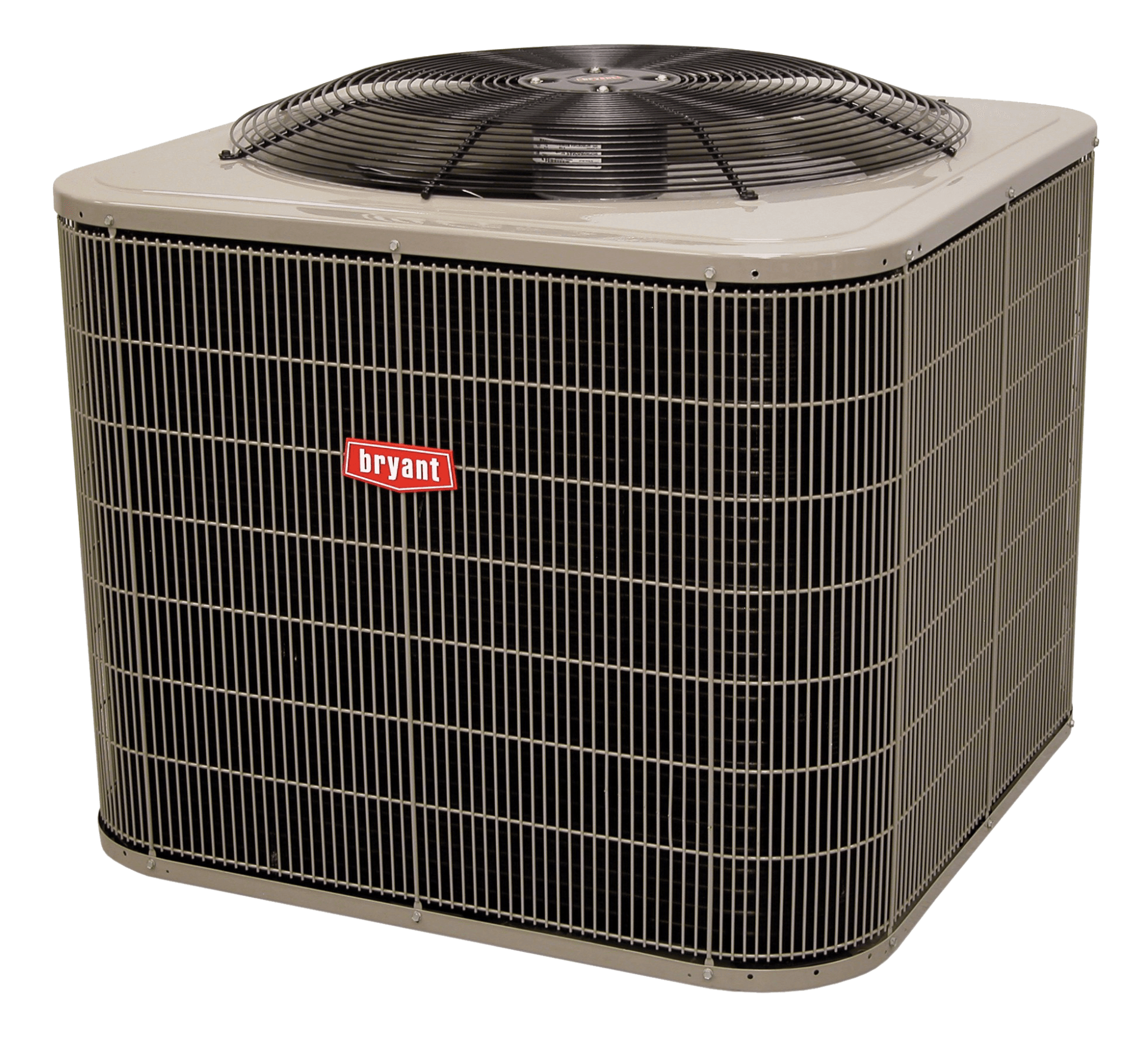

Legacy™ Single-stage Heat Pump
Model: 215B
- Product Line: Heat Pumps - Legacy Line
- Energy Star® Qualified: All sizes qualified
- SEER Efficiency Range: 13 to 15.9 SEER
- SEER Range: 13 to 15.9 SEER
- SEER Efficiency: 15
- HSPF Efficiency Range: 8 to 8.9 HSPF
- HSPF Efficiency: 8.5
- Compressor Type: Single-Stage
- Noise Level Range: 60 to 69 Decibels
- Noise Level: as low as 69
- Proposition 65 Product Warnings: 343824-2 Lead and Lead Compounds
- Enjoy cool, summer comfort with up to 15 SEER/12.5 EER efficiency
- Take advantage of efficient electric heating well into the winter months with up to 8.5 HSPF efficiency
- Sound as low as 69 dB (quiet as a vacuum)
- Enjoy Wi-Fi®± remote access capability to allow complete programming and change control from anywhere with the Bryant® Housewise™ thermostat
- DuraGuard™ protection system
- Environmentally-sound Puron® refrigerant
- 10-year parts limited warranty upon registration1
1To the original owner, when product is used in a residence, a 10-year parts limited warranty upon timely registration of your new equipment. Warranty period is 5 years if not registered within 90 days. Jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive a 10-year parts limited warranty. See warranty certificate for complete details.
±Wi-Fi® is a registered trademark of the Wi-Fi Alliance Corporation.
EFFICIENCY MANAGEMENT
Energy Efficiency 15 SEER/12.5 EER cooling; 8.5 HSPF heating
ENERGY STAR® Meets ENERGY STAR® guidelines for high efficiency in all models/sizes
Hybrid Heat® system capable Allows gas furnace/heat pump system combinations for best winter heating efficiencies
SOUND
Quiet levels During lowest capacity cooling operating condition: 69 dB
CONVENIENCES
Remote access Manage your system from afar with remote access when paired with the Bryant Housewise Wi-Fi® thermostat
Reminders Automatic maintenance reminders and service alerts with the Bryant Housewise thermostat
TECHNOLOGY
Compressor Single-stage scroll
Refrigerant Puron® refrigerant
Protections High pressure switch, loss of charge switch and filter drier
Controls supported Bryant Housewise Wi-Fi thermostat and other Preferred series thermostats
Capacity 1.5-5 tons
AESTHETICS
Design Attractive DuraGuard™ system
Construction Durable, sheet metal construction
Paint Baked-on, complete outer coverage, powder paint
*Bryant reserves the right to discontinue or change any specification or design without prior notice or obligation.

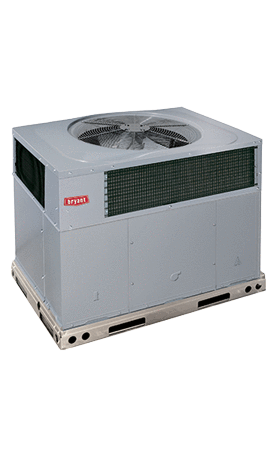

Legacy™ Line Heat Pump Systems
Model: 607C
- Product Line: Packaged Products - Legacy Line
- System Type: Heat Pumps
- SEER Range: 13 to 15.9 SEER
- SEER Rating: up to 14.5
- HSPF Rating: 8.0
- Compressor Type: Single-Stage
- Proposition 65 Product Warnings: 343824-2 Lead and Lead Compounds
- Enjoy efficient, cool summer comfort
- Transition to winter with heat pump heating efficiency of 8.0 HSPF
- Enjoy the optimized comfort of multi-speed air delivery
- Blower-enhanced comfort during cooling operation through reduced humidity with appropriate control
- Galvanized steel cabinet with "coil on top" design for lasting durability against the elements
- Heavy-duty wire grille protects the coil against physical damage
- Solid cabinet base panels help prevent infiltration of dirt, debris and moisture
- 10-year parts limited warranty upon registration1
1To the original owner, when product is used in a residence, a 10-year parts limited warranty upon timely registration of your new equipment. Warranty period is 5 years if not registered within 90 days. Jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive a 10-year parts limited warranty. See warranty certificate for complete details.
EFFICIENCY MANAGEMENT
Energy Efficiency Up to 14.5 SEER / Up to 12 EER cooling; 8.0 HSPF heating
Heating and Cooling Stages Single-stage operation
SOUND
Quiet Levels During most common cooling operating condition: 73 dB
CONVENIENCES
Remote Access Manage your system from afar with remote access when paired with the Bryant Housewise™ Wi-Fi ® thermostat
Reminders Automatic maintenance reminders and service alerts with the Housewise thermostat
TECHNOLOGY
Blower Motor High-efficiency multi-speed
Compressor Single-stage scroll
Refrigerant Puron ® refrigerant
Optional Protection DuraCoat™ tin-plated coil protection for additional corrosion resistance
Capacity 2-5 tons
AESTHETICS
Design Dense wire coil guard for additional protection with solid panels below
Construction Galvanized steel with high-tech composite (rust-free) base
Paint Baked-on urethane base coat and polyester top coat
Bryant reserves the right to discontinue or change any specification or design without prior notice or obligation.
Legacy™ Single-Stage Coastal Heat Pump
Model: 213ANC
- Product Line: Heat Pumps - Legacy Line
- Energy Star: Not qualified
- SEER Efficiency Range: 13 to 15.9 SEER
- SEER Efficiency: 13
- HSPF Efficiency Range: 7 tom 7.9 HSPF
- HSPF Efficiency: 7.7
- Compressor Technology: Single-Stage
- Noise Level Range: 70+ Decibels
- Noise Level: as low as 74
- Proposition 65 Product Warnings: 343824-2 Lead and Lead Compounds
- Enjoy cool, summer comfort with 13 SEER/11 EER efficiency
- Take advantage of efficient electric heating well into the winter months with 7.7 HSPF efficiency
- Sound as low as 74 dB
- Enjoy Wi-Fi®± remote access capability to allow complete programming and change control from anywhere with the Bryant® Housewise™ thermostat
- DuraGuard™ protection system
- Coastal design unit offers added protection against corrosive salt air
- Environmentally-sound Puron® refrigerant
- 10-year parts limited warranty upon registration1
- 5-year coastal corosion parts limited warranty2
1To the original owner, when product is used in a residence, a 10-year parts limited warranty upon timely registration of your new equipment. Warranty period is 5 years if not registered within 90 days. Jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive a 10-year parts limited warranty. See warranty certificate for complete details.
2To the original owner, Bryant model 213ANC is covered by a 5-year seacoast corrosion limited warranty, as well as a 10-year parts limited warranty upon timely registration. The parts limited warranty period is five years if not registered within 90 days of installation. Jurisdictions where warranty benefi ts cannot be conditioned on registration will receive a 10-year parts limited warranty period. See warranty certicate at Bryant.com for complete details and restrictions.
±Wi-Fi® is a registered trademark of the Wi-Fi Alliance Corporation.
EFFICIENCY MANAGEMENT
Energy Efficiency 13 SEER/11 EER cooling; 7.7 HSPF heating
Hybrid Heat® system capable Allows gas furnace/heat pump system combinations for best winter heating efficiencies
SOUND
Quiet levels During lowest capacity cooling operating condition: 74 dB
CONVENIENCES
Remote access Manage your system from afar with remote access when paired with the Bryant Housewise Wi-Fi® thermostat
Reminders Automatic maintenance reminders and service alerts with the Bryant Housewise thermostat
TECHNOLOGY
Compressor Single-stage scroll
Refrigerant Puron® refrigerant
Protections High pressure switch, loss of charge switch and filter drier
Coastal Coastguard™ added protection: corrosion-resistant fin epoxy phenolic thermoset coating; 100% paint coverage on outer casing
Controls supported Bryant Housewise Wi-Fi thermostat and other Preferred series thermostats
Capacity 1.5-5 tons
AESTHETICS
Design Attractive DuraGuard™ system
Construction Durable, sheet metal construction
Paint Baked-on, complete outer coverage, powder paint
*Bryant reserves the right to discontinue or change any specification or design without prior notice or obligation.

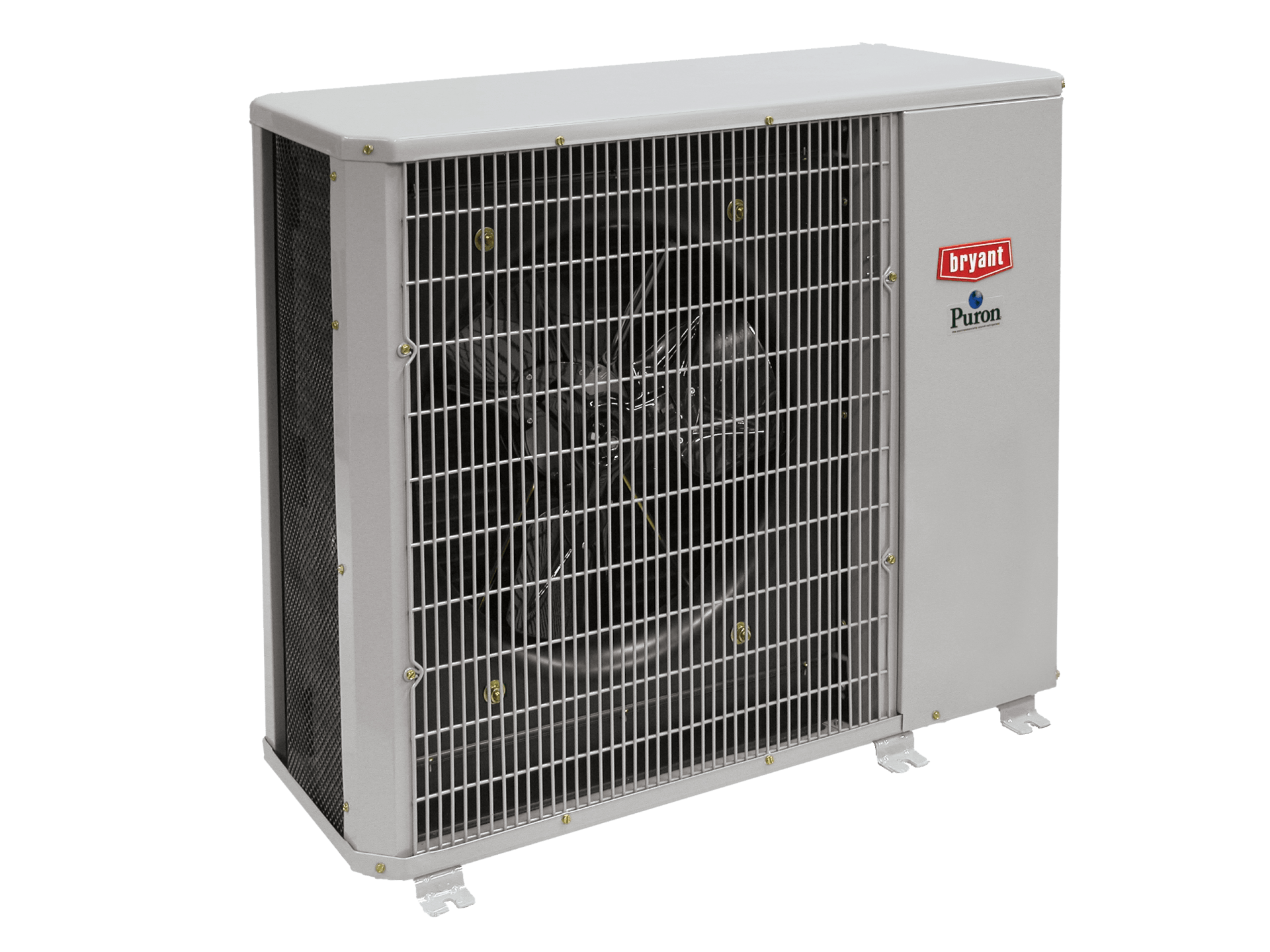

Preferred™ Compact Heat Pump
Model: 224ANS
- Product Line: Ductless systems – Preferred Series Light Commercial
- Energy Star: Not qualified
- SEER Efficiency Range: 13 to 15.9 SEER
- SEER Efficiency: up to 14.0
- HSPF Efficiency Range: 8 to 8.9 HSPF
- HSPF Efficiency: up to 8.2
- Sound Level Range: 60+ Decibels
- Sound Level: As low as 68 decibels
- Purpose: Heating and cooling
- System Type: Single Zone
- Proposition 65 Product Warnings: 343824-2 Lead and Lead Compounds
- Ultra-compact for small spaces and for stacking in multi-family housing
- Enjoy cool summer comfort
- Take advantage of efficient electric heating well into the winter months
- Sound as low as 68 dB (quiet as a vacuum)
- Enjoy Wi-Fi®± remote access capability to allow complete programming and change control from anywhere with the Bryant® Housewise™ thermostat
- Environmentally-sound Puron® refrigerant
- 10-year parts limited warranty upon registration1
1To the original owner, when product is used in a residence, a 10-year parts limited warranty upon timely registration of your new equipment. Warranty period is 5 years if not registered within 90 days. Jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive a 10-year parts limited warranty. See warranty certificate for complete details.
±Wi-Fi® is a registered trademark of the Wi-Fi Alliance Corporation.
EFFICIENCY MANAGEMENT
Energy Efficiency 14 SEER/11.5 EER cooling; 8.2 HSPF heating
Hybrid Heat® system capable Allows gas furnace/heat pump system combinations for best winter heating efficiencies
SOUND
Quiet levels During lowest capacity cooling operating condition: 68 dB
CONVENIENCES
Remote access Manage your system from afar with remote access when paired with the Bryant Housewise Wi-Fi® thermostat
Reminders Automatic maintenance reminders and service alerts with the Bryant Housewise thermostat
TECHNOLOGY
Compressor Single-stage scroll
Refrigerant Puron® refrigerant
Sound enhancements Compressor sound blanket
Protections High pressure switch, loss of charge switch and filter drier
Controls supported Bryant Housewise Wi-Fi thermostat and other Preferred series thermostats
Capacity 1-5 tons
AESTHETICS
Design Flow through design has galvanized steel construction, heavy-duty wire fan guard and baked-on powder paint
*Bryant reserves the right to discontinue or change any specification or design without prior notice or obligation.
Preferred™ Heat Pump with Basepan Heater
Model: 538PR
- Product Line: Ductless systems – Preferred Series
- Energy Star: Some sizes qualified
- SEER Efficiency Range: 23+ SEER
- SEER Efficiency: up to 23.5
- HSPF Efficiency Range: 10 to 11.9 HSPF
- HSPF Efficiency: up to 10.5
- Sound Level Range: 50 to 59 Decibels
- Sound Level: As low as 55.5 decibels
- Purpose: Heating and cooling
- System Type: Single Zone
- Proposition 65 Product Warnings: 343824-2 Lead and Lead Compounds
- Inverter Compressor
- Up to 23.5 SEER cooling efficiency
- Up to 10.5 HSPF heating efficiency
- Select sizes are ENERGY STAR® certified based on indoor unit pairing
- Available in 115V and 208/230V
- Sizes ranging from 09 to 30
- Built-in basepan heater
- Condenser high-temperature protection
- Refrigerant leakage detection
- Piping length 82-164 ft. depending on unit capacity and system configuration
- Quiet outdoor sound operation, as low as 55.5 decibels1
- 10-year parts limited and 10-year compressor limited warranties to the original purchasing owner upon timely registration2
- Compatible units: 619PB High Wall, 619RC Cassette, 619RD Ducted, 619RF Floor Console
1 Quietest size within each model group during most common cooling operating condition.
2 If properly registered within ninety (90) days after original installation, parts are warranted to the original purchaser for a period of 10 years. Otherwise, parts warranty is 5 years. For other applications a 7-year parts and 7-year compressor limited warranties apply. See warranty certificate for details.
EFFICIENCY MANAGEMENT
Energy Efficiency Up to 23.5 SEER/up to 14.5 EER/up to 10.5 HSPF
ENERGY STAR® Select sizes are ENERGY STAR® certified based on indoor unit pairing
COMFORT MANAGEMENT
Cooling Operating Range 4° F up to 122° F (-20° C up to 50° C)
Heating Operating Range 4° F up to 86° F (-20° C up to 30° C)
SOUND
Quiet Levels as low as 55.5 dB(A)1
CONVENIENCES
Notifications Advanced system diagnostics
TECHNOLOGY
Compressor Inverter, isolated for sound reduction
Protections Voltage, current
System Capacity 0.75 - 2.5 tons
AESTHETICS
Construction Durable, heavy gauge galvanized steel
Paint Baked-on, powder paint
Line Length Up to 164 ft.
MODELS
Full Model Numbers 538PAQXXXRBMA, 538PEQXXXRBMA
COMPATIBLE UNITS
Full Model Numbers (Single Zone System) 619PAQXXXBBMA High Wall, 619PEQXXXBBMA High Wall, 619REQXXXCBMA Cassette, 619REQXXXDBMA Ducted, 619REQXXXFBMA Floor Console
Bryant reserves the right to discontinue or change any specification or design without prior notice or obligation.
1 Quietest size within each model group during most common cooling operating condition.
Legacy™ Single-Stage Coastal Heat Pump
Model: 214DNC
- Product Line: Heat Pumps - Legacy Line
- Energy Star® Qualified: Not qualified
- SEER Efficiency Range: 13 to 15.9 SEER
- SEER Range: 13 to 15.9 SEER
- SEER Efficiency: 14
- HSPF Efficiency Range: 8 to 8.9 HSPF
- HSPF Efficiency: 8.2
- Compressor Type: Single-Stage
- Noise Level Range: 70+ Decibels
- Noise Level: as low as 72
- Proposition 65 Product Warnings: 343824-2 Lead and Lead Compounds
- Enjoy cool, summer comfort with 14 SEER/12 EER efficiency
- Take advantage of efficient electric heating well into the winter months with 8.2 HSPF efficiency
- Sound as low as 72 dB
- Enjoy Wi-Fi®± remote access capability to allow complete programming and change control from anywhere with the Bryant® Housewise™ thermostat
- DuraGuard™ protection system
- Coastal design unit offers added protection against corrosive salt air
- Environmentally-sound Puron® refrigerant
- 10-year parts limited warranty upon registration1
- 5-year coastal corosion parts limited warranty2
1To the original owner, when product is used in a residence, a 10-year parts limited warranty upon timely registration of your new equipment. Warranty period is 5 years if not registered within 90 days. Jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive a 10-year parts limited warranty. See warranty certificate for complete details.
2To the original owner, Bryant model 213ANC is covered by a 5-year seacoast corrosion limited warranty, as well as a 10-year parts limited warranty upon timely registration. The parts limited warranty period is five years if not registered within 90 days of installation. Jurisdictions where warranty benefi ts cannot be conditioned on registration will receive a 10-year parts limited warranty period. See warranty certicate at Bryant.com for complete details and restrictions.
±Wi-Fi® is a registered trademark of the Wi-Fi Alliance Corporation.
EFFICIENCY MANAGEMENT
Energy Efficiency 14 SEER/12 EER cooling; 8.2 HSPF heating
Hybrid Heat® system capable Allows gas furnace/heat pump system combinations for best winter heating efficiencies
SOUND
Quiet levels During lowest capacity cooling operating condition: 72 dB
CONVENIENCES
Remote access Manage your system from afar with remote access when paired with the Bryant Housewise Wi-Fi® thermostat
Reminders Automatic maintenance reminders and service alerts with the Bryant Housewise thermostat
TECHNOLOGY
Compressor Single-stage scroll
Refrigerant Puron® refrigerant
Protections High pressure switch, loss of charge switch and filter drier
Coastal TuffCoat™ added protection: corrosion-resistant fin epoxy phenolic thermoset coating; 100% paint coverage on outer casing
Controls supported Bryant Housewise Wi-Fi thermostat and other Preferred series thermostats
Capacity 1.5-5 tons
AESTHETICS
Design Attractive DuraGuard™ system
Construction Durable, sheet metal construction
Paint Baked-on, complete outer coverage, powder paint
*Bryant reserves the right to discontinue or change any specification or design without prior notice or obligation.
Preferred™ 2-stage Heat Pump
Model: 226A
- Product Line: Heat Pumps - Preferred Series
- Energy Star® Qualified: All sizes qualified
- SEER Efficiency Range: 16 to 19.9 SEER
- SEER Efficiency: up to 17
- HSPF Efficiency Range: 9 to 9.9 HSPF
- HSPF Efficiency: up to 9.5
- Compressor Type: Two-Stage
- Noise Level Range: 70+ Decibels
- Noise Level: as low as 70
- Proposition 65 Product Warnings: 343824-2 Lead and Lead Compounds
- Enjoy cool, summer comfort with up to 17 SEER/13.5 EER efficiency
- Take advantage of efficient electric heating well into the winter months with up to 9.5 HSPF efficiency
- Two-stage operation allows longer, more consistent comfort cycles on low stage for savings and comfort
- Enhanced summer dehumidification through two-stage operation
- Sound as low as 70 dB
- Enjoy Wi-Fi®±remote access capability to allow complete programming and change control from anywhere with the Bryant® Housewise™ thermostat
- DuraGuard™ Plus protection system
- Environmentally-sound Puron® refrigerant
- 10-year parts limited warranty upon registration1
1To the original owner, when product is used in a residence, a 10-year parts limited warranty upon timely registration of your new equipment. Warranty period is 5 years if not registered within 90 days. Jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive a 10-year parts limited warranty. See warranty certificate for complete details.
±Wi-Fi® is a registered trademark of the Wi-Fi Alliance Corporation.
EFFICIENCY MANAGEMENT
Energy Efficiency Up to 17 SEER/13.5 EER cooling; Up to 9.5 HSPF heating
ENERGY STAR® Meets ENERGY STAR® guidelines for high efficiency in all models/sizes
Cooling and heating stages Two-stage operation for greater efficiency
Hybrid Heat® system capable Allows gas furnace/heat pump system combinations for best winter heating efficiencies
COMFORT MANAGEMENT
Cooling 2-stage operation for longer low cycle cooling to minimize temperature fluctuation
Dehumidification Better humidity management from 2-stage units when managed by Bryant® Housewise™ thermostat
SOUND
Quiet levels During lowest capacity cooling operating condition: 70 dB
CONVENIENCES
Remote access Manage your system from afar with remote access when paired with the Bryant Housewise Wi-Fi® thermostat
Reminders Automatic maintenance reminders and service alerts with the Bryant Housewise thermostat
TECHNOLOGY
Compressor 2-stage scroll
Refrigerant Puron® refrigerant
Protections High pressure switch, loss of charge switch and filter drier
Controls supported Bryant Housewise Wi-Fi thermostat and other Preferred series thermostats
Capacity 2-5 tons
AESTHETICS
Design Attractive DuraGuard™ Plus system
Construction Durable, sheet metal construction
Paint Baked-on, complete outer coverage, powder paint
*Bryant reserves the right to discontinue or change any specification or design without prior notice or obligation.
Preferred™ Compact Heat Pump
Model: 538B
- Product Line: Heat Pumps - Preferred Series
- Energy Star: Not qualified
- SEER Efficiency Range: 13 to 15.9 SEER
- SEER Efficiency: 13
- HSPF Efficiency Range: 7 to 7.9 HSPF
- HSPF Efficiency: 7.7
- Compressor Technology: Single-Stage
- Noise Level Range: 60 to 69 Decibels
- Noise Level: as low as 68
- Proposition 65 Product Warnings: 343824-2 Lead and Lead Compounds
- Ultra-compact for small spaces and for stacking in multi-family housing
- Enjoy cool summer comfort
- Take advantage of efficient electric heating well into the winter months
- Sound as low as 68 dB (quiet as a vacuum)
- Enjoy Wi-Fi®± remote access capability to allow complete programming and change control from anywhere with the Bryant® HousewiseTM thermostat
- Environmentally-sound Puron® refrigerant
- 10-year parts limited warranty upon registration1
1To the original owner, when product is used in a residence, a 10-year parts limited warranty upon timely registration of your new equipment. Warranty period is 5 years if not registered within 90 days. Jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive a 10-year parts limited warranty. See warranty certificate for complete details.
±Wi-Fi® is a registered trademark of the Wi-Fi Alliance Corporation.
EFFICIENCY MANAGEMENT
Energy Efficiency 13 SEER/11 EER cooling; 7.7 HSPF heating
Hybrid Heat® system capable Allows gas furnace/heat pump system combinations for best winter heating efficiencies
SOUND
Quiet levels During lowest capacity cooling operating condition: 68 dB
CONVENIENCES
Remote access Manage your system from afar with remote access when paired with the Bryant Housewise Wi-Fi® thermostat
Reminders Automatic maintenance reminders and service alerts with the Bryant Housewise thermostat
TECHNOLOGY
Compressor Single-stage scroll
Refrigerant Puron® refrigerant
Sound enhancements Compressor sound blanket
Protections High pressure switch, loss of charge switch and filter drier
Controls supported Bryant Housewise Wi-Fi thermostat and other Preferred series thermostats
Capacity 1.5-5 tons
AESTHETICS
Design Flow through design has galvanized steel construction, heavy-duty wire fan guard and baked-on powder paint
*Bryant reserves the right to discontinue or change any specification or design without prior notice or obligation.
Preferred™ Heat Pump with Basepan Heater
Model: 538PR
- Product Line: Ductless systems – Preferred Series
- Energy Star: Some sizes qualified
- SEER Efficiency Range: 23+ SEER
- SEER Efficiency: up to 23.5
- HSPF Efficiency Range: 10 to 11.9 HSPF
- HSPF Efficiency: up to 10.5
- Sound Level Range: 50 to 59 Decibels
- Sound Level: As low as 55.5 decibels
- Purpose: Heating and cooling
- System Type: Single Zone
- Proposition 65 Product Warnings: 343824-2 Lead and Lead Compounds
- Inverter Compressor
- Up to 23.5 SEER cooling efficiency
- Up to 10.5 HSPF heating efficiency
- Select sizes are ENERGY STAR® certified based on indoor unit pairing
- Available in 115V and 208/230V
- Sizes ranging from 09 to 30
- Built-in basepan heater
- Condenser high-temperature protection
- Refrigerant leakage detection
- Piping length 82-164 ft. depending on unit capacity and system configuration
- Quiet outdoor sound operation, as low as 55.5 decibels1
- 10-year parts limited and 10-year compressor limited warranties to the original purchasing owner upon timely registration2
- Compatible units: 619PB High Wall, 619RC Cassette, 619RD Ducted, 619RF Floor Console
1 Quietest size within each model group during most common cooling operating condition.
2 If properly registered within ninety (90) days after original installation, parts are warranted to the original purchaser for a period of 10 years. Otherwise, parts warranty is 5 years. For other applications a 7-year parts and 7-year compressor limited warranties apply. See warranty certificate for details.
EFFICIENCY MANAGEMENT
Energy Efficiency Up to 23.5 SEER/up to 14.5 EER/up to 10.5 HSPF
ENERGY STAR® Select sizes are ENERGY STAR® certified based on indoor unit pairing
COMFORT MANAGEMENT
Cooling Operating Range 4° F up to 122° F (-20° C up to 50° C)
Heating Operating Range 4° F up to 86° F (-20° C up to 30° C)
SOUND
Quiet Levels as low as 55.5 dB(A)1
CONVENIENCES
Notifications Advanced system diagnostics
TECHNOLOGY
Compressor Inverter, isolated for sound reduction
Protections Voltage, current
System Capacity 0.75 - 2.5 tons
AESTHETICS
Construction Durable, heavy gauge galvanized steel
Paint Baked-on, powder paint
Line Length Up to 164 ft.
MODELS
Full Model Numbers 538PAQXXXRBMA, 538PEQXXXRBMA
COMPATIBLE UNITS
Full Model Numbers (Single Zone System) 619PAQXXXBBMA High Wall, 619PEQXXXBBMA High Wall, 619REQXXXCBMA Cassette, 619REQXXXDBMA Ducted, 619REQXXXFBMA Floor Console
Bryant reserves the right to discontinue or change any specification or design without prior notice or obligation.
1 Quietest size within each model group during most common cooling operating condition.
Preferred™ Multi-Zone Heat Pump with Basepan Heater
Model: 538TR
- Product Line: Ductless systems – Preferred Series
- Energy Star: Some sizes qualified
- SEER Efficiency Range: 19 to 22.9 SEER
- SEER Efficiency: up to 22.0
- HSPF Efficiency Range: 10 to 11.9 HSPF
- HSPF Efficiency: up to 10.0
- Sound Level Range: 60+ Decibels
- Sound Level: As low as 60 decibels
- Purpose: Heating and cooling
- System Type: Multi-Zone
- Proposition 65 Product Warnings: 343824-2 Lead and Lead Compounds
- Inverter Compressor
- Up to 22.0 SEER cooling efficiency
- Up to 10.0 HSPF heating efficiency
- Select sizes are ENERGY STAR® certified based on indoor combinations
- Available in 208/230V
- Sizes ranging from 18 to 48
- Built-in basepan heater
- Total piping lengths range from 98 ft. to 245 ft.depending on unit size
- Connects two to five indoor units (zones) to a single outdoor unit
- Multiple style indoor units (PreferredTM Series)
- Condenser high-temperature protection
- Refrigerant leakage detection
- Quiet outdoor sound operation, as low as 60 decibels1
- System diagnostics
- 10-year parts limited and 10-year compressor limited warranties to the original purchasing owner upon timely registration2
- Compatible units: 619PB High Wall, 619RC Cassette, 619RD Ducted, 619RF Floor Console
1 Quietest size within each model group during most common cooling operating condition.
2 If properly registered within ninety (90) days after original installation, parts are warranted to the original purchaser for a period of 10 years. Otherwise, parts warranty is 5 years. For other applications a 7-year parts and 7-year compressor limited warranties apply. See warranty certificate for details.
EFFICIENCY MANAGEMENT
Energy Efficiency Up to 22.0 SEER/up to 12.5 EER/up to 10 HSPF
ENERGY STAR® Select sizes are ENERGY STAR® certified based on indoor unit combinations
COMFORT MANAGEMENT
Cooling Outdoor range operates from -4° F up to 122° F (-20° C up to 50° C)
Heating Outdoor range operates from -4° F up to 86° F (-20° C up to 30° C)
SOUND
Quiet Levels As low as 60 dB(A)1
CONVENIENCES
Notifications Advanced system diagnostics
TECHNOLOGY
Compressor Inverter, isolated for sound reduction
Protections Voltage, current, high pressure, and loss of charge
System Capacity 1.5 - 4 tons
AESTHETICS
Construction Durable, heavy gauge galvanized steel
Paint Baked-on, powder paint
Line Length Up to 245 ft.
MODEL
Full Model Number 538TEQXXXRXMA
COMPATIBLE UNITS
Full Model Numbers (Multi-Zone System) 619PEQXXXBBMA High Wall, 619REQXXXDBMA Ducted, 619REQXXXCBMA Cassette, 619REQXXXFBMA Floor Console
Bryant reserves the right to discontinue or change any specification or design without prior notice or obligation.
1 Quietest size within each model group during most common cooling operating condition.
Preferred™ Single-stage Heat Pump
Model: 223A
- Product Line: Heat Pumps - Legacy Line
- Energy Star: Not qualified
- SEER Efficiency Range: 13 to 15.9 SEER
- SEER Efficiency: 13
- HSPF Efficiency Range: 7 to 7.9 HSPF
- HSPF Efficiency: 7.7
- Compressor Technology: Single-Stage
- Noise Level Range: 70+ Decibels
- Noise Level: as low as 70
- Proposition 65 Product Warnings: 343824-2 Lead and Lead Compounds
- Enjoy cool, summer comfort with 13 SEER/11 EER efficiency
- Take advantage of efficient electric heating well into the winter months with up to 7.7 HSPF efficiency
- Sound as low as 70 dB
- Enjoy Wi-Fi®± remote access capability to allow complete programming and change control from anywhere with the Bryant® Housewise™ thermostat
- DuraGuard™ Plus protection system
- Environmentally-sound Puron® refrigerant
- 10-year parts limited warranty upon registration1
1To the original owner, when product is used in a residence, a 10-year parts limited warranty upon timely registration of your new equipment. Warranty period is 5 years if not registered within 90 days. Jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive a 10-year parts limited warranty. See warranty certificate for complete details.
±Wi-Fi® is a registered trademark of the Wi-Fi Alliance Corporation.
EFFICIENCY MANAGEMENT
Energy Efficiency 13 SEER/11 EER cooling; 7.7 HSPF heating
Hybrid Heat® system capable Allows gas furnace/heat pump system combinations for best winter heating efficiencies
SOUND
Quiet levels During lowest capacity cooling operating condition: 70 dB
CONVENIENCES
Remote access Manage your system from afar with remote access when paired with the Bryant Housewise Wi-Fi® thermostat
Reminders Automatic maintenance reminders and service alerts with the Bryant Housewise thermostat
TECHNOLOGY
Compressor Single-stage scroll
Refrigerant Puron® refrigerant
Sound enhancements Compressor sound blanket
Protections High pressure switch, loss of charge switch and filter drier
Controls supported Bryant Housewise Wi-Fi thermostat and other Preferred series thermostats
Capacity 1.5-5 tons
AESTHETICS
Design Attractive DuraGuard™ Plus system
Construction Durable, sheet metal construction
Paint Baked-on, complete outer coverage, powder paint
*Bryant reserves the right to discontinue or change any specification or design without prior notice or obligation.
Preferred™ Single-Stage Heat Pump
Model: 225B
- Product Line: Heat Pumps - Preferred Series
- Energy Star® Qualified: All sizes qualified
- SEER Efficiency Range: 16 to 19.9 SEER
- SEER Efficiency: up to 16
- HSPF Efficiency Range: 9 to 9.9 HSPF
- HSPF Efficiency: up to 9.0
- Compressor Type: Single-Stage
- Noise Level Range: 60 to 69 Decibels
- Noise Level: as low as 68
- Proposition 65 Product Warnings: 343824-2 Lead and Lead Compounds
- Enjoy cool, summer comfort with up to 16 SEER/13 EER efficiency
- Take advantage of efficient electric heating well into the winter months with up to 9 HSPF efficiency
- Sound as low as 68 dB (quiet as a vacuum)
- Enjoy Wi-Fi®± remote access capability to allow complete programming and change control from anywhere with the Bryant® Housewise™ thermostat
- DuraGuard™ Plus protection system
- Environmentally-sound Puron® refrigerant
- 10-year parts limited warranty upon registration1
1To the original owner, when product is used in a residence, a 10-year parts limited warranty upon timely registration of your new equipment. Warranty period is 5 years if not registered within 90 days. Jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive a 10-year parts limited warranty. See warranty certificate for complete details.
±Wi-Fi® is a registered trademark of the Wi-Fi Alliance Corporation.
EFFICIENCY MANAGEMENT
Energy Efficiency Up to 16 SEER/13 EER cooling; Up to 9 HSPF heating
ENERGY STAR® Meets ENERGY STAR® guidelines for high efficiency in all models/sizes
Hybrid Heat® system capable Allows gas furnace/heat pump system combinations for best winter heating efficiencies
SOUND
Quiet levels During lowest capacity cooling operating condition: 68 dB
CONVENIENCES
Remote access Manage your system from afar with remote access when paired with the Bryant Housewise Wi-Fi® thermostat
Reminders Automatic maintenance reminders and service alerts with the Bryant Housewise thermostat
TECHNOLOGY
Compressor Single-stage scroll
Refrigerant Puron® refrigerant
Sound enhancements Compressor sound blanket
Protections High pressure switch, loss of charge switch and filter drier
Controls supported Bryant Housewise Wi-Fi thermostat and other Preferred series thermostats
Capacity 1.5-5 tons
AESTHETICS
Design Attractive DuraGuard™ Plus system
Construction Durable, sheet metal construction
Paint Baked-on, complete outer coverage, powder paint
*Bryant reserves the right to discontinue or change any specification or design without prior notice or obligation.
Preferred™ Single-Stage Heat Pump
Model: 226C
- Energy Star® Qualified: All sizes qualified
- Product Line: Heat Pumps - Preferred Series
- SEER Efficiency: up to 17
- HSPF Efficiency: up to 9.5
- Compressor Type: Single-Stage
- Proposition 65 Product Warnings: 343824-2 Lead and Lead Compounds
- Enjoy cool, summer comfort with up to 17 SEER/13 EER efficiency
- Take advantage of efficient electric heating well into the winter months with up to 9 HSPF efficiency
- Sound as low as 67 dB (quiet as a vacuum)
- Enjoy Wi-Fi®± remote access capability to allow complete programming and change control from anywhere with the Bryant® Housewise™ thermostat
- DuraGuard™ Plus protection system
- Environmentally-sound Puron® refrigerant
- 10-year parts limited warranty upon registration1
1To the original owner, when product is used in a residence, a 10-year parts limited warranty upon timely registration of your new equipment. Warranty period is 5 years if not registered within 90 days. Jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive a 10-year parts limited warranty. See warranty certificate for complete details.
±Wi-Fi® is a registered trademark of the Wi-Fi Alliance Corporation.
EFFICIENCY MANAGEMENT
Energy Efficiency Up to 17 SEER/13 EER cooling; Up to 9 HSPF heating
ENERGY STAR® Meets ENERGY STAR guidelines for high efficiency in all models/sizes
Hybrid Heat® system capable Allows gas furnace/heat pump system combinations for best winter heating efficiencies
SOUND
Quiet levels During lowest capacity cooling operating condition: 67 dB
CONVENIENCES
Remote access Manage your system from afar with remote access when paired with the Bryant Housewise™ Wi-Fi® thermostat
Reminders Automatic maintenance reminders and service alerts with the Bryant Housewise thermostat
TECHNOLOGY
Compressor Single-stage scroll
Refrigerant Puron® refrigerant
Sound enhancements Compressor sound blanket
Protections High pressure switch, loss of charge switch and filter drier
Controls supported Bryant Housewise Wi-Fi thermostat and other Preferred series thermostats
Capacity 1.5-5 tons
AESTHETICS
Design Attractive DuraGuard™ Plus system
Construction Durable, sheet metal construction
Paint Baked-on, complete outer coverage, powder paint
*Bryant reserves the right to discontinue or change any specification or design without prior notice or obligation.
Geothermal Heat Pumps
Evolution™ Split System Geothermal Heat Pump
Model: GZ
Product Line: Geothermal Heat Pumps - Split System
System Type: Split System
Energy Star: All sizes qualified
EER Efficiency Range: 15.4 to 28.8 EER (closed loop); 19.2 to 30.5 EER (open loop)
COP Efficiency Range: 3.4 to 4.6 COP (closed loop); 3.9 to 5.1 COP (open loop)
Proposition 65 Product Warnings: 343824-2 Lead and Lead Compounds
Compressor Type: Two-Stage Scroll
- Manage your utility costs with high-efficiency comfort (efficiency is unit size dependent): Closed loop cooling EER - Up to 28.8; Closed loop heating COP - Up to 4.6
- Two-stage scroll compressor operation allows longer, more consistent cycles in lower stage for savings and comfort
- Optimal dehumidification capability with the Evolution Connex™ control
- Insulated cabinet and compressor blanket for quiet operation
- Wide operating temperature range with exceptional cold weather performance
- Compatible with a wide range of furnaces and fan coils
- 10-year parts and labor limited warranty1
OPTIONAL FEATURES
- Supplemental, domestic hot water generation
1. To the original owner, when installed in a residence, a 10-year parts and labor limited warranty upon timely registration of equipment. Warranty period is 10 years on parts and 5 years on labor if not registered within 90 days of installation. Original owners residing in jurisdictions that prohibit warranty benefits conditioned on registration will automatically receive a 10-year parts and labor limited warranty. See warranty certificate for details.
EFFICIENCY MANAGEMENT
Cooling Efficiency 15.4 to 28.8 EER (closed loop); 19.2 to 30.5 EER (open loop)
Heating Efficiency 3.4 to 4.6 COP (closed loop); 3.9 to 5.1 COP (open loop)
Heating and Cooling Stages Two-stage operation for efficiency and comfort
Hybrid Heat® System Capable Allows gas furnace/heat pump system combination use for heating season
ENERGY STAR® ENERGY STAR® qualified in all sizess (6-ton size only qualifies when paired with a properly sized evaporator coil)
SOUND
Quiet Levels Quiet operation enhanced by full cabinet insulation; double-isolation compressor mounting and compressor sound blanket
CONVENIENCES
MaintenanceReminders With Evolution Connex™ control
TECHNOLOGY
Blower Motor Dependent on furnace or fan coil paired with
Compressor Two-stage scroll
Control Board Microprocessor with compressor diagnostic capability
Refrigerant Puron® refrigerant
Refrigerant Management Thermostatic expansion valve
INSTALLATION
Placement Indoor
AESTHETICS
Capacity 2-6 tons
Construction Galvanized steel
Paint Baked-on urethane base coat and polyester top coat
Bryant reserves the right to discontinue or change any specification or design without prior notice or obligation.
Evolution™ Variable-speed Geothermal Heat Pump
Model: GC
Product Line: Geothermal Heat Pumps - Packaged
System Type: Packaged Forced Air System
Energy Star: All sizes qualified
EER Efficiency Range: 18.5 to 32.0 EER (closed loop); 23.1 to 37.0 EER (open loop)
COP Efficiency Range: 3.8 to 4.7 COP (closed loop); 4.5 to 5.2 COP (open loop)
Proposition 65 Product Warnings: 343824-2 Lead and Lead Compounds
Compressor Type: Two-Stage
- Manage your utility costs with high-efficiency comfort (efficiency is unit size dependent): Closed loop cooling EER - Up to 32.0; Closed loop heating COP - Up to 4.7
- Optimal dehumidification capability with the Evolution Connex™ control
- Enjoy the ultra-quiet performance and even-temperature comfort of variable-speed air delivery
- Two-stage scroll compressor operation allows longer, more consistent cycles in lower stage for savings and comfort
- Superior summer dehumidification
- Smart startup for smoother operation
- Insulated cabinet and compressor blanket for quiet operation
- Wide operating temperature range with exceptional cold weather performance
- Corrosion-resistant coil for durability
- 2" MERV 13 filtration
- 10-year parts and labor limited warranty1
OPTIONAL FEATURES
- Supplemental, domestic hot water generation
- Internally-mounted auxiliary heat
1To the original owner, when installed in a residence, a 10-year parts and labor limited warranty upon timely registration of equipment. Warranty period is 10 years on parts and 5 years on labor if not registered within 90 days of installation. Original owners residing in jurisdictions that prohibit warranty benefits conditioned on registration will automatically receive a 10-year parts and labor limited warranty. See warranty certificate for details.
EFFICIENCY MANAGEMENT
Cooling Efficiency 18.5 to 32.0 EER (closed loop); 23.1 to 37.0 EER (open loop)
Heating Efficiency 3.8 to 4.7 COP (closed loop); 4.5 to 5.2 COP (open loop)
Heating and CoolingStages Two-stage operation for efficiency and comfort
ENERGY STAR® ENERGY STAR ® qualified in all sizes
SOUND
Quiet Levels Quiet operation enhanced by full cabinet insulation; double-isolation compressor mounting and compressor sound blanket
CONVENIENCES
Filter Cabinet Built-in for easy filter changes
Maintenance Reminders With Evolution Connex™ control
TECHNOLOGY
Blower Motor High-efficiency variable-speed
Compressor Two-stage scroll
Control Board Microprocessor with compressor diagnostic capability
Refrigerant Puron® refrigerant
Refrigerant Management Thermostatic expansion valve
Protection Corrosion-resistant coil protection for long life
INSTALLATION
Positioning Vertical upflow, horizontal or vertical downflow units available
AESTHETICS
Capacity 2-6 tons
Construction Galvanized steel
Paint Baked-on urethane base coat and polyester top coat
Bryant reserves the right to discontinue or change any specification or design without prior notice or obligation.
Legacy™ Multi-speed Geothermal Heat Pump
Model: GB
Product Line: Geothermal Heat Pumps - Packaged
System Type: Packaged Forced Air System
Energy Star: All sizes qualified
EER Efficiency Range: 18.5 to 21.7 EER (closed loop); 21.4 to 28.1 EER (open loop)
COP Efficiency Range: 3.7 to 4.3 COP (closed loop); 4.3 to 5.2 COP (open loop)
Proposition 65 Product Warnings: 343824-2 Lead and Lead Compounds
Compressor Type: Single-Stage
- Manage your utility costs with high-efficiency geothermal (efficiency is unit size dependent): Closed loop cooling EER - Up to 28.1; Closed loop heating COP - Up to 4.3
- Multi-speed air delivery aides quiet performance
- Single-stage compressor operation
- Insulated cabinet for quiet operation
- Wide operating temperature range with exceptional cold weather performance
- Corrosion-resistant coil for durability
- 2" MERV 8 filtration
- 10-year parts and 5-year labor limited warranty1
OPTIONAL FEATURES
- Supplemental, domestic hot water generation
- Internally-mounted auxiliary heat
- Smart startup add-on for smoother operation
1. To the original owner, when installed in a residence, a 10-year parts and labor limited warranty upon timely registration of equipment. Warranty period is 10 years on parts and 5 years on labor if not registered within 90 days of installation. Original owners residing in jurisdictions that prohibit warranty benefits conditioned on registration will automatically receive a 10-year parts and labor limited warranty. See warranty certificate for details.
EFFICIENCY MANAGEMENT
Cooling Efficiency 18.5 to 21.7 EER (closed loop); 21.4 to 28.1 EER (open loop)
Heating Efficiency 3.7 to 4.3 COP (closed loop); 4.3 to 5.2 COP (open loop)
Heating and CoolingStages Single-stage operation
ENERGY STAR® ENERGY STAR® qualified in all sizes
SOUND
Quiet Levels Quiet operation enhanced by full cabinet insulation and double-isolation compressor mounting
CONVENIENCES
Filter Cabinet Built-in for easy filter changes
MaintenanceReminders With compatible control
TECHNOLOGY
Blower Motor Multi-speed
Compressor Single-stage scroll (2-5 ton); Single-stage rotary (1.5 ton)
Control Board Microprocessor
Refrigerant Puron® refrigerant
Refrigerant Management Thermostatic expansion valve
Protection Corrosion-resistant coil protection for long life
INSTALLATION
Positioning Vertical upflow and horizontal units available
AESTHETICS
Capacity 1.5-5 tons
Construction Galvanized steel
Paint Baked-on urethane base coat and polyester top coat
Bryant reserves the right to discontinue or change any specification or design without prior notice or obligation.
Preferred™ Hydronic-Use Geothermal Heat Pump
Model: GW
Product Line: Geothermal Heat Pumps - Hydronics
System Type: Radiant (Hydronic) Systems
Energy Star: All sizes qualified
EER Efficiency Range: 14.6 to 22.1 EER (closed loop); 18.8 to 25.7 EER (open loop)
COP Efficiency Range: 3.0 to 3.2 COP (closed loop); 3.4 to 3.8 COP (open loop)
Proposition 65 Product Warnings: 343824-2 Lead and Lead Compounds
- Manage your utility costs with high-efficiency comfort (efficiency is unit size dependent): Closed loop cooling EER - Up to 22.1; Closed loop heating COP - Up to 3.2
- Capable of providing whole home cooling (requires hydronic air handler and ductwork)
- Two-stage scroll compressor operation allows longer, more consistent cycles in lower stage for savings and comfort
- Insulated cabinet and compressor blanket for quiet operation
- Wide operating temperature range with exceptional cold weather performance
- 10-year parts and labor limited warranty1
OPTIONAL FEATURES
- Supplemental, domestic hot water generation
- Smart startup add-on for smoother operation
1. To the original owner, when installed in a residence, a 10-year parts and labor limited warranty upon timely registration of equipment. Warranty period is 10 years on parts and 5 years on labor if not registered within 90 days of installation. Original owners residing in jurisdictions that prohibit warranty benefits conditioned on registration will automatically receive a 10-year parts and labor limited warranty. See warranty certificate for details.
EFFICIENCY MANAGEMENT
Cooling Efficiency 14.6 to 22.1 EER (closed loop); 18.8 to 25.7 EER (open loop)
Heating Efficiency 3.0 to 3.2 COP (closed loop); 3.4 to 3.8 COP (open loop)
Heating and Cooling Stages Two-stage operation for efficiency and comfort
ENERGY STAR® ENERGY STAR® qualified in all sizes
FEDERAL TAX CREDITS Qualified for up to 30% purchase price plus installation including loop system in all sizes±
SOUND
Quiet Levels Quiet operation enhanced by full cabinet insulation; double-isolation compressor mounting and compressor sound blanket
CONVENIENCES
MaintenanceReminders With compatible control
TECHNOLOGY
Compressor Two-stage scroll
Control Board Microprocessor with compressor diagnostic capability
Refrigerant Puron® refrigerant
Refrigerant Management Thermostatic expansion valve
Protection Cupro-nickel water coils available for well-water applications
AESTHETICS
Capacity 2, 3, 4, 5 and 10 tons
Construction Galvanized steel
Paint Baked-on urethane base coat and polyester top coat
±For existing homeowners and those building a new home who install qualifying geothermal heating and cooling systems, a one-time tax credit is available totaling 30% of the installed cost of a residential ground loop or ground water geothermal heat pump. To qualify for this credit, the system must meet current geothermal ENERGY STAR® requirements and be installed prior to December 31, 2019.
For details go to the ENERGY STAR®website. This notice is not to be considered tax advice. See your tax professional to determine how these credits would apply in your circumstance.
Bryant reserves the right to discontinue or change any specification or design without prior notice or obligation.
Preferred™ Split System Indoor Geothermal Heat Pump
Model: GS
Product Line: Geothermal Heat Pumps - Split System
System Type: Split System
Energy Star: All sizes qualified
EER Efficiency Range: 15.4 to 26.4 EER (closed loop); 19.2 to 30.5 EER (open loop)
COP Efficiency Range: 3.4 to 4.5 COP (closed loop); 3.9 to 5.1 COP (open loop)
Proposition 65 Product Warnings: 343824-2 Lead and Lead Compounds
- Manage your utility costs with high-efficiency comfort (efficiency is unit size dependent): Closed loop cooling EER - Up to 26.4; Closed loop heating COP - Up to 4.5
- Two-stage scroll compressor operation allows longer, more consistent cycles in lower stage for savings and comfort
- Superior summer dehumidification
- Smart startup for smoother operation
- Insulated cabinet and compressor blanket for quiet operation
- Wide operating temperature range with exceptional cold weather performance
- Compatible with a wide range of furnaces and fan coils
- 10-year parts and labor limited warranty1
OPTIONAL FEATURES
- Supplemental, domestic hot water generation
1. To the original owner, when installed in a residence, a 10-year parts and labor limited warranty upon timely registration of equipment. Warranty period is 10 years on parts and 5 years on labor if not registered within 90 days of installation. Original owners residing in jurisdictions that prohibit warranty benefits conditioned on registration will automatically receive a 10-year parts and labor limited warranty. See warranty certificate for details.
EFFICIENCY MANAGEMENT
Cooling Efficiency 15.4 to 26.4 EER (closed loop); 19.2 to 30.5 EER (open loop)
Heating Efficiency 3.4 to 4.5 COP (closed loop); 3.9 to 5.1 COP (open loop)
Heating and Cooling Stages Two-stage operation for efficiency and comfort
Hybrid Heat® System Capable Allows gas furnace/heat pump system combination use for heating season
ENERGY STAR® ENERGY STAR® qualified in all sizess (6-ton size only qualifies when paired with a properly sized evaporator coil)
FEDERAL TAX CREDITS Qualified for up to 30% purchase price plus installation including loop system in all sizes
SOUND
Quiet Levels Quiet operation enhanced by full cabinet insulation; double-isolation compressor mounting and compressor sound blanket
CONVENIENCES
MaintenanceReminders With compatible control
TECHNOLOGY
Blower Motor Dependent on furnace or fan coil paired with
Compressor Two-stage scroll
Control Board Microprocessor with compressor diagnostic capability
Refrigerant Puron® refrigerant
Refrigerant Management Thermostatic expansion valve
INSTALLATION
Placement Indoor
AESTHETICS
Capacity 2-6 tons
Construction Galvanized steel
Paint Baked-on urethane base coat and polyester top coat
Bryant reserves the right to discontinue or change any specification or design without prior notice or obligation.
Preferred™ Variable-Speed Geothermal Heat Pump
Model: GP
Product Line: Geothermal Heat Pumps - Packaged
System Type: Packaged Forced Air System
Energy Star: All sizes qualified
EER Efficiency Range: 15.5 to 24.5 EER (closed loop); 19.6 to 30.0 EER (open loop)
COP Efficiency Range: 3.5 to 4.0 COP (closed loop); 4.0 to 4.6 COP (open loop)
Proposition 65 Product Warnings: 343824-2 Lead and Lead Compounds
Compressor Type: Two-Stage
- Manage your utility costs with high-efficiency comfort (efficiency is unit size dependent): Closed loop cooling EER - Up to 24.5; Closed loop heating COP - Up to 4.0
- Enjoy the ultra-quiet performance and even-temperature comfort of variable-speed air delivery
- Two-stage scroll compressor operation allows longer, more consistent cycles in lower stage for savings and comfort
- Superior summer dehumidification
- Insulated cabinet and compressor blanket for quiet operation
- Wide operating temperature range with exceptional cold weather performance
- Corrosion-resistant coil for durability
- 2" MERV 8 filtration
- 10-year parts and labor limited warranty1
OPTIONAL FEATURES
- Supplemental, domestic hot water generation
- Internally-mounted auxiliary heat
- Smart startup add-on for smoother operation
1. To the original owner, when installed in a residence, a 10-year parts and labor limited warranty upon timely registration of equipment. Warranty period is 10 years on parts and 5 years on labor if not registered within 90 days of installation. Original owners residing in jurisdictions that prohibit warranty benefits conditioned on registration will automatically receive a 10-year parts and labor limited warranty. See warranty certificate for details.
EFFICIENCY MANAGEMENT
Cooling Efficiency 15.5 to 24.5 EER (closed loop); 19.6 to 30.0 EER (open loop)
Heating Efficiency 3.5 to 4.0 COP (closed loop); 4.0 to 4.6 COP (open loop)
Heating and Cooling Two-stage operation for efficiency and comfort
ENERGY STAR® ENERGY STAR® qualified in all sizes
SOUND
Quiet Levels Quiet operation enhanced by full cabinet insulation; double-isolation compressor mounting and compressor sound blanket
CONVENIENCES
Filter Cabinet Built-in for easy filter changes
MaintenanceReminders With compatible control
TECHNOLOGY
Blower Motor High-efficiency variable-speed
Compressor Two-stage scroll
Control Board Microprocessor with compressor diagnostic capability
Refrigerant Puron® refrigerant
Refrigerant Management Thermostatic expansion valve
Protection Corrosion-resistant coil protection for long life
INSTALLATION
Positioning Vertical upflow, horizontal or vertical downflow units available
AESTHETICS
Capacity 2-6 tons
Construction Galvanized steel
Paint Baked-on urethane base coat and polyester top coat
Bryant reserves the right to discontinue or change any specification or design without prior notice or obligation.
Preferred™ Variable-speed Geothermal Heat Pump
Model: GT
Product Line: Geothermal Heat Pumps - Packaged
System Type: Packaged Forced Air System
Energy Star: All sizes qualified
EER Efficiency Range: 18.5 to 32.0 EER (closed loop); 23.1 to 37.0 EER (open loop)
COP Efficiency Range: 3.8 to 4.7 COP (closed loop); 4.5 to 5.2 COP (open loop)
Proposition 65 Product Warnings: 343824-2 Lead and Lead Compounds
- Manage your utility costs with high-efficiency comfort (efficiency is unit size dependent): Closed loop cooling EER - Up to 32.0; Closed loop heating COP - Up to 4.7
- Enjoy the ultra-quiet performance and even-temperature comfort of variable-speed air delivery
- Two-stage scroll compressor operation allows longer, more consistent cycles in lower stage for savings and comfort
- Superior summer dehumidification
- Smart startup for smoother operation
- Insulated cabinet and compressor blanket for quiet operation
- Wide operating temperature range with exceptional cold weather performance
- Corrosion-resistant coil for durability
- 2" MERV 13 filtration
- 10-year parts and labor limited warranty1
OPTIONAL FEATURES
- Supplemental, domestic hot water generation
- Internally-mounted auxiliary heat
1To the original owner, when installed in a residence, a 10-year parts and labor limited warranty upon timely registration of equipment. Warranty period is 10 years on parts and 5 years on labor if not registered within 90 days of installation. Original owners residing in jurisdictions that prohibit warranty benefits conditioned on registration will automatically receive a 10-year parts and labor limited warranty. See warranty certificate for details.
EFFICIENCY MANAGEMENT
Cooling Efficiency 18.5 to 32.0 EER (closed loop); 23.1 to 37.0 EER (open loop)
Heating Efficiency 3.8 to 4.7 COP (closed loop); 4.5 to 5.2 COP (open loop)
Heating and CoolingStages Two-stage operation for efficiency and comfort
ENERGY STAR® ENERGY STAR ® qualified in all sizes
FEDERAL TAX CREDITS Qualified for 30% purchase price plus installation including loop system in all sizes
SOUND
Quiet Levels Quiet operation enhanced by full cabinet insulation; double-isolation compressor mounting and compressor sound blanket
CONVENIENCES
Filter Cabinet Built-in for easy filter changes
Maintenance Reminders With compatible control
TECHNOLOGY
Blower Motor High-efficiency variable-speed
Compressor Two-stage scroll
Control Board Microprocessor with compressor diagnostic capability
Refrigerant Puron® refrigerant
Refrigerant Management Thermostatic expansion valve
Protection Corrosion-resistant coil protection for long life
INSTALLATION
Positioning Vertical upflow, horizontal or vertical downflow units available
AESTHETICS
Capacity 2-6 tons
Construction Galvanized steel
Paint Baked-on urethane base coat and polyester top coat
Bryant reserves the right to discontinue or change any specification or design without prior notice or obligation.
Gas Furnaces
Evolution® Variable-Speed 80% Efficiency Gas Furnace
Model: 315A
- Product Line: Gas Furnaces - Evolution Series
- AFUE Efficiency: 80%
- AFUE Range: 80 to 84.9% AFUE
- Gas Valve Type: Two-Stage
- Proposition 65 Product Warnings: 343824-2 Lead and Lead Compounds
- Quiet performance and even-temperature comfort from variable-speed air delivery
- Two-stage operation allows longer, more even heating cycles on low stage
- Perfect Heat® technology closely manages your comfort by adjusting system operation to changing conditions
- Perfect Humidity® technology ensures optimal summertime cooling dehumidification when system components include multi- and variable-speed cooling products.
- Fan On Plus™ technology lets you choose the speed of continuous fan operation with a compatible control
- Insulated cabinet for quieter operation
- 20-year limited warranty on heat exchanger1
- 10-year parts limited warranty upon timely registration2
1To the original owner, when product is used in an owner-occupied residence, a 20-year heat exchanger parts limited warranty upon timely registration of your new equipment. See warranty certificate for details
2To the original owner, when product is used in an owner-occupied residence, a 10-year parts limited warranty upon timely registration of your new equipment. Warranty period is 5 years if not registered within 90 days. Jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive a 10-year parts limited warranty. See warranty certificate for complete details.
EFFICIENCY MANAGEMENT
Gas Efficiency 80% AFUE
Electrical Efficiency Variable speed ECM blower motor design offers Bryant's best in electric savings
Heating stages Two-stage operation for efficiency and comfort
Summer savings Capable of improving SEER (energy efficiency) during cooling season with properly matched cooling system components
Hybrid Heat® system capable Allows gas furnace/heat pump system combinations for best heating efficiencies
CONVENIENCES
TrueSense™ Dirty filter detection with compatible control
Maintenance reminders With compatible control
TECHNOLOGY
SmartEvap™ technology Provides additional summer duhumidification as a part of your air conditioning system
QuietTech™ Sound-reducing technology
Blower Motor Variable speed, high-efficiency ECM
Primary Heat Exchanger Corrosion-resistant clamshell design of aluminized steel
Gas Valve Two-stage
Igniter PerfectLight™ hot surface igniter (pilot-free)
Fuel Natural gas, convertible to liquid propane (LP)
Capacity 66,000 - 154,000 BTUH
AESTHETICS
Profile 4-way multipoise
Construction Galvanized steel
Paint Baked-on urethane base coat and polyester top coat
Bryant reserves the right to discontinue or change any specification or design without prior notice or obligation.
Evolution™ 80 Variable-Speed Ultra-Low NOx Gas Furnace
Model: 830CA
- Product Line: Gas Furnaces - Evolution Series
- AFUE Efficiency: 80%
- AFUE Range: 80 to 84.9% AFUE
- Gas Valve Type: Single-Stage
- Proposition 65 Product Warnings: 343824-2 Lead and Lead Compounds
- Quiet performance and even-temperature comfort from variable-speed air delivery
- Ultra Low NOx burner technology- meets 14 ng/J NOx emissions limit for California's South Coast Air Quality Management District and San Joaquin Air Pollution Control District.
- Perfect Humidity® technology aids with summertime cooling dehumidification when system components include multi- and variable-speed cooling products.
- Fan On Plus™ technology lets you choose the speed of continuous fan operation with a compatible control
- Insulated cabinet for quieter operation
- Lifetime heat exchanger limited warranty upon registration1
- 10-year parts limited warranty upon registration2
1To the original owner, when product is used in an owner-occupied residence, a 20-year heat exchanger parts limited warranty upon timely registration of your new equipment. See warranty certificate for details
2To the original owner, when product is used in an owner-occupied residence, a 10-year parts limited warranty upon timely registration of your new equipment. Warranty period is 5 years if not registered within 90 days. Jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive a 10-year parts limited warranty. See warranty certificate for complete details.
EFFICIENCY MANAGEMENT
Gas Efficiency 80% AFUE
Electrical Motor Efficiency Variable speed, constant airflow (VCA) ECM blower motor design offers outstanding electric savings when compared to PSC motors
Heating stages Single-stage operation
Summer savings Capable of improving SEER (energy efficiency) during cooling season with properly matched cooling system components
Hybrid Heat® system capable Allows gas furnace/heat pump system combinations for best heating efficiencies
CONVENIENCES
TrueSense™ Dirty filter detection with compatible control
Maintenance reminders With compatible control
TECHNOLOGY
SmartEvap™ technology Provides additional summer duhumidification as a part of your air conditioning system
Blower Motor Variable speed, constant airflow (VCA) ECM
Heat Exchanger Stainless Steel Tubular Heat Exchanger
Gas Valve Single-stage
Igniter PerfectLight™ hot surface igniter (pilot-free)
Fuel Natural gas only, not convertible to liquid propane (LP)
Capacity 40,000 - 100,000 BTUH
AESTHETICS
Profile 4-way multipoise
Construction Galvanized steel
Paint Baked-on urethane base coat and polyester top coat
Bryant reserves the right to discontinue or change any specification or design without prior notice or obligation.
Evolution™ 96 Variable-Speed Gas Furnace
Model: 986T
- Product Line: Gas Furnaces - Evolution Series
- Energy Star® Qualified: Some sizes qualified
- AFUE Efficiency: up to 96.7%
- AFUE Range: 95%+ AFUE
- Gas Valve Type: Two-Stage
- Proposition 65 Product Warnings: 343824-2 Lead and Lead Compounds
- Manage your utility costs with high-efficiency comfort: up to 96.7% AFUE
- Enjoy the ultra-quiet performance and even-temperature comfort of variable speed air delivery
- Two-stage operation allows longer, more consistent heating cycles on low stage for savings and comfort
- Perfect Heat™ technology means consistent comfort by adjusting system operation to changing conditions
- Perfect Humidity™ technology removes more moisture than a standard furnace during cooling operation (when installed with a matched air conditioner or heat pump)
- Fan On Plus™ technology lets you choose between four speeds of continuous fan operation with a compatible control
- Insulated cabinet for quieter operation
- External filter cabinet makes filter changes easier
- Lifetime limited warranty on heat exchanger upon timely registration1
- 10-year parts limited warranty upon registration upon timely registration2
1To the original owner, when product is used in an owner-occupied residence, a Lifetime heat exchanger parts limited warranty upon timely registration of your new equipment. Warranty period is reduced to 20-years (from Lifetime) on heat exchanger if not registered within 90 days. Jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive the extended registered heat exchanger parts limited warranty period. See warranty certificate for details
2To the original owner, when product is used in an owner-occupied residence, a 10-year parts limited warranty upon timely registration of your new equipment. Warranty period is 5 years if not registered within 90 days. Jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive a 10-year parts limited warranty. See warranty certificate for complete details.
EFFICIENCY MANAGEMENT
Gas Efficiency Up to 96.7% AFUE
Electrical Motor Efficiency Excellent
ENERGY STAR® Model 986T meets ENERGY STAR® guidelines for high efficiency
Heating stages Two-stage operation for efficiency and comfort
Summer savings The variable-speed blower motor, with properly matched cooling system components, is the ideal choice for improving SEER (energy efficiency) during cooling season
Hybrid Heat® system capable Allows gas furnace/heat pump system combinations for enhanced heating efficiencies
CONVENIENCES
Filter cabinet Included external air filter cabinet allows easier filter changes
TrueSense™ Dirty filter detection with Evolution control
Maintenance reminders With Evolution control
TECHNOLOGY
SmartEvap™ technology Provides additional summer duhumidification as a part of your air conditioning system
Blower Motor Variable-speed, constant airflow, full featured ECM
Primary Heat Exchanger Corrosion-resistant clamshell design of aluminized steel
Secondary Heat Exchanger Fin-and-tube stainless steel
Gas Valve Two-stage
Igniter PerfectLight™ hot surface igniter (pilot-free)
Fuel Natural gas, convertible to liquid propane (LP)
Capacity 40,000 - 120,000 BTUH
AESTHETICS
Profile 4-way multipoise
Construction Galvanized steel
Paint Baked-on urethane base coat and polyester top coat
Bryant reserves the right to discontinue or change any specification or design without prior notice or obligation.
Evolution™ 98 Variable-Speed Modulating Gas Furnace
Model: 987M
- Product Line: Gas Furnaces - Evolution Series
- Energy Star® Qualified: All sizes qualified
- AFUE Efficiency: up to 98.3%
- AFUE Range: 95%+ AFUE
- Gas Valve Type: Modulating
- Proposition 65 Product Warnings: 343824-2 Lead and Lead Compounds
- Manage your utility costs with high-efficiency comfort: up to 98.3% AFUE
- Enjoy the ultra-quiet performance and even-temperature comfort of variable speed air delivery
- Precise gas modulation always delivers the right amount of heat for the greatest energy efficiency
- Perfect Heat™ technology means consistent comfort by adjusting system operation to changing conditions
- Perfect Humidity™ technology removes more moisture than a standard furnace during cooling operation (when installed with a matched air conditioner or heat pump)
- Fan On Plus™ technology lets you choose between four speeds of continuous fan operation with a compatible control
- Fully insulated cabinet for quieter operation
- External filter cabinet makes filter changes easier
- Lifetime limited warranty on heat exchanger upon timely registration1
- 10-year parts limited warranty upon registration upon timely registration2
1To the original owner, when product is used in an owner-occupied residence, a Lifetime heat exchanger parts limited warranty upon timely registration of your new equipment. Warranty period is reduced to 20-years (from Lifetime) on heat exchanger if not registered within 90 days. Jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive the extended registered heat exchanger parts limited warranty period. See warranty certificate for details
2To the original owner, when product is used in an owner-occupied residence, a 10-year parts limited warranty upon timely registration of your new equipment. Warranty period is 5 years if not registered within 90 days. Jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive a 10-year parts limited warranty. See warranty certificate for complete details.
EFFICIENCY MANAGEMENT
Gas Efficiency Up to 98.3% AFUE
Electrical Motor Efficiency Excellent
ENERGY STAR® Model 987M meets ENERGY STAR® guidelines for high efficiency
Heating stages Modulating operation for load matching and the highest energy efficiency
Summer savings The variable-speed blower motor, with properly matched cooling system components, is the ideal choice for improving SEER (energy efficiency) during cooling season
Hybrid Heat® system capable Allows gas furnace/heat pump system combinations for enhanced heating efficiencies
CONVENIENCES
Filter cabinet Included external filter cabinet allows easier filter changes
TrueSense™ Dirty filter detection with Evolution control
Maintenance reminders With Evolution control
TECHNOLOGY
SmartEvap™ technology Provides additional summer duhumidification as a part of your air conditioning system
Blower Motor Variable-speed constant airflow full-featured ECM
Primary Heat Exchanger Corrosion-resistant clamshell design of aluminized steel
Secondary Heat Exchanger Fin-and-tube stainless steel
Gas Valve Modulating
Igniter PerfectLight™ hot surface igniter (pilot-free)
Fuel Natural gas, convertible to liquid propane (LP) with accessory kit
Capacity 60,000 - 120,000 BTUH
AESTHETICS
Profile 4-way multipoise
Construction Galvanized steel
Paint Baked-on urethane base coat and polyester top coat
Bryant reserves the right to discontinue or change any specification or design without prior notice or obligation.
Evolution™ Variable-Speed Gas Furnace
Model: 880TA
- Product Line: Heat Pumps - Evolution Series
- Energy Star® Qualified: All sizes qualified
- SEER Range: 16 to 19.9 SEER
- SEER Efficiency: up to 17
- HSPF Efficiency Range: 9 to 9.9 HSPF
- HSPF Efficiency: up to 9.5
- Compressor Type: Two-Stage
- Noise Level Range: 60 to 69 Decibels
- Noise Level: as low as 68
- Proposition 65 Product Warnings: 343824-2 Lead and Lead Compounds
- Enjoy cool, summer comfort with up to 17 SEER/9.5 EER efficiency
- Take advantage of efficient electric heating well into the winter months with up to 9.5 HSPF efficiency
- Two-stage operation allows longer, more consistent comfort cycles on low stage for savings and comfort
- Enhanced summer dehumidification through two-stage operation
- Sound as low as 68 dB
- Enjoy Wi-Fi®± remote access capability to allow complete programming and change control from anywhere with the Evolution™ ConnexTM control for ultimate performance
- AeroQuiet SystemTM design
- DuraGuard™ Plus protection system
- Environmentally-sound Puron® refrigerant
- 10-year parts limited warranty upon registration1
1To the original owner, when product is used in a residence, a 10-year parts limited warranty upon timely registration of your new equipment. Warranty period is 5 years if not registered within 90 days. Jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive a 10-year parts limited warranty. See warranty certificate for complete details.
±Wi-Fi® is a registered trademark of the Wi-Fi Alliance Corporation.
EFFICIENCY MANAGEMENT
Energy Efficiency Up to 17 SEER/13.5 EER cooling; Up to 9.5 HSPF heating
ENERGY STAR® Meets ENERGY STAR® guidelines for high efficiency in all models/sizes
Cooling and heating stages Two-stage operation for greater efficiency
Hybrid Heat® system capable Allows gas furnace/heat pump system combinations for best winter heating efficiencies
COMFORT MANAGEMENT
Cooling 2-stage operation for longer low cycle cooling to minimize temperature fluctuation
Dehumidification Better humidity management from 2-stage units when managed by Evolution ConnexTM control
SOUND
Quiet levels During lowest capacity cooling operating condition: 68 dB
AeroQuietTM System II design Pressure equalizer valve, compressor sound blanket; quiet mount split post compressor grommets, forward-swept fan blade
CONVENIENCES
Notifications Maintenance reminders and service notices through the advanced system diagnostics of the Evolution Connex control
TECHNOLOGY
Compressor 2-stage scroll
Refrigerant Puron® refrigerant
Compatibility Designed for best efficiencies when part of Evolution system
Protections High pressure switch, loss of charge switch and filter drier
Diagnostics Enhanced diagnostics with Evolution control
Capacity 2-5 tons
AESTHETICS
Design Attractive DuraGuard™ Plus system
Construction Durable, sheet metal construction
Paint Baked-on, complete outer coverage, powder paint
*Bryant reserves the right to discontinue or change any specification or design without prior notice or obligation.
LegacyTM 80 Line Fixed-Speeds 80% Efficiency Gas Furnace
Model: 800SA
- Product Line: Gas Furnaces - Legacy Line
- AFUE Efficiency: 80%
- AFUE Range: 80 to 84.9% AFUE
- Gas Valve Type: Single-Stage
- Proposition 65 Product Warnings: 343824-2 Lead and Lead Compounds
- Pilot-free PerfectLight™ ignition
- Low NOx models available (801SA)
- 20-year limited warranty on heat exchanger3
- 10-year parts limited warranty upon timely registration2
1To the original owner, when product is used in an owner-occupied residence, a 20-year heat exchanger parts limited warranty upon timely registration of your new equipment. See warranty certificate for details
2To the original owner, when product is used in an owner-occupied residence, a 10-year parts limited warranty upon timely registration of your new equipment. Warranty period is 5 years if not registered within 90 days. Jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive a 10-year parts limited warranty. See warranty certificate for complete details.
320-Year Heat Exchanger Limited Warranty. When used in an owner-occupied residence. See warranty certificate for details.
EFFICIENCY MANAGEMENT
Gas Efficiency 80% AFUE
Hybrid Heat® system capable Allows gas furnace/heat pump system combinations for best heating efficiencies
CONVENIENCES
Filter cabinet Allows easier filter changes
TECHNOLOGY
Blower Motor Fixed-speed constant torque (FCT) ECM motor
Heat Exchanger Aluminized steel
Gas Valve Single-stage
Fuel Natural gas, convertible to liquid propane (LP)
Capacity 43,000 - 155,000 BTUH
AESTHETICS
Profile 4-way multipoise
Construction Galvanized steel
Paint Baked-on urethane base coat and polyester top coat
Bryant reserves the right to discontinue or change any specification or design without prior notice or obligation.
LegacyTM 80 Line Fixed-Speeds 80% Efficiency Gas Furnace
Model: 810SA
- Product Line: Gas Furnaces - Legacy Line
- AFUE Efficiency: 80%
- AFUE Range: 80 to 84.9% AFUE
- Gas Valve Type: Single-Stage
- Proposition 65 Product Warnings: 343824-2 Lead and Lead Compounds
- Fan On Plus™ technology lets you choose the speed of continuous fan operation with a compatible control
- QuieTech™ noise reduction system
- Pilot-free PerfectLight™ ignition
- Insulated cabinet for quieter operation
- Low NOx models available (811SA)
- 20-year limited warranty on heat exchanger3
- 10-year parts limited warranty upon timely registration2
1To the original owner, when product is used in an owner-occupied residence, a 20-year heat exchanger parts limited warranty upon timely registration of your new equipment. See warranty certificate for details
2To the original owner, when product is used in an owner-occupied residence, a 10-year parts limited warranty upon timely registration of your new equipment. Warranty period is 5 years if not registered within 90 days. Jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive a 10-year parts limited warranty. See warranty certificate for complete details.
320-Year Heat Exchanger Limited Warranty. When used in an owner-occupied residence. See warranty certificate for details.
EFFICIENCY MANAGEMENT
Gas Efficiency 80% AFUE
Hybrid Heat® system capable Allows gas furnace/heat pump system combinations for best heating efficiencies
CONVENIENCES
Filter cabinet Allows easier filter changes
TECHNOLOGY
Blower Motor Fixed-speedS constant torque (FCT) ECM motor
Heat Exchanger Aluminized steel
Gas Valve Single-stage
Fuel Natural gas, convertible to liquid propane (LP)
Capacity 30,000 - 135,000 BTUH
AESTHETICS
Profile 4-way multipoise
Construction Galvanized steel
Paint Baked-on urethane base coat and polyester top coat
Bryant reserves the right to discontinue or change any specification or design without prior notice or obligation.
LegacyTM 95 Ultra-Low NOx Gas Furnace
Model: 935SA
- Product Line: Gas furnaces - Legacy Line
- AFUE Efficiency: 95%
- AFUE Range: 80 to 84.9% AFUE
- Gas Valve Type: Single-Stage
- Proposition 65 Product Warnings: 343824-2 Lead and Lead Compounds
- Ultra Low NOx burner technology- meets 14 ng/J NOx emissions limit for California's South Coast Air Quality Management District and San Joaquin Air Pollution Control District.
- Multi-speed blower is customized to your home for comfort
- Insulated cabinet for quieter operation
- 20-year limited warranty on heat exchanger1
- 10-year parts limited warranty upon timely registration2
1To the original owner, when product is used in an owner-occupied residence, a 20-year heat exchanger parts limited warranty upon timely registration of your new equipment. See warranty certificate for details
2To the original owner, when product is used in an owner-occupied residence, a 10-year parts limited warranty upon timely registration of your new equipment. Warranty period is 5 years if not registered within 90 days. Jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive a 10-year parts limited warranty. See warranty certificate for complete details.
EFFICIENCY MANAGEMENT
Gas Efficiency 95% AFUE
Heating stages Single-stage heating
Summer savings Capable of improving SEER (energy efficiency) during cooling season with properly matched cooling system components
Hybrid Heat® system capable Allows gas furnace/heat pump system combinations for best heating efficiencies
TECHNOLOGY
Blower Motor Multi-speed ECM
Primary Heat Exchanger Stainless steel
Secondary Heat Exchange Fin-and-tube stainless steel
Gas Valve Single-stage
Igniter PerfectLight™ hot surface igniter (pilot-free)
Fuel Natural gas, not convertible to liquid propane
Capacity 60,000 - 100,000 BTUH
AESTHETICS
Profile 4-way multipoise
Construction Galvanized steel
Paint Baked-on urethane base coat and polyester top coat
Bryant reserves the right to discontinue or change any specification or design without prior notice or obligation.
LegacyTM Line 80 Multi-Speed, Ultra-Low NOx Gas Furnace
Model: 830SA
- Product Line: Gas furnaces - Legacy Line
- AFUE Efficiency: 80%
- AFUE Range: 80 to 84.9% AFUE
- Gas Valve Type: Single-Stage
- Proposition 65 Product Warnings: 343824-2 Lead and Lead Compounds
- Ultra Low NOx burner technology- meets 14 ng/J NOx emissions limit for California's South Coast Air Quality Management District and San Joaquin Air Pollution Control District.
- Multi-speed blower is customized to your home for comfort
- Insulated cabinet for quieter operation
- 20-year limited warranty on heat exchanger3
- 10-year parts limited warranty upon timely registration2
1To the original owner, when product is used in an owner-occupied residence, a Lifetime heat exchanger parts limited warranty upon timely registration of your new equipment. Warranty period is reduced to 20-years (from Lifetime) on heat exchanger if not registered within 90 days. Jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive the extended registered heat exchanger parts limited warranty period. See warranty certificate for details.
2To the original owner, when product is used in an owner-occupied residence, a 10-year parts limited warranty upon timely registration of your new equipment. Warranty period is 5 years if not registered within 90 days. Jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive a 10-year parts limited warranty. See warranty certificate for complete details.
3To the original owner, when product is used in an owner-occupied residence, a 20-year heat exchanger parts limited warranty upon timely registration of your new equipment. See warranty certificate for details.
EFFICIENCY MANAGEMENT
Gas Efficiency 80% AFUE
Heating stages Single-stage heating
Summer savings Capable of improving SEER (energy efficiency) during cooling season with properly matched cooling system components
Hybrid Heat® system capable Allows gas furnace/heat pump system combinations for enhanced heating efficiencies
TECHNOLOGY
Blower Motor Multi-speed ECM
Heat Exchanger Stainless steel
Secondary Heat Exchanger None
Gas Valve Single-stage
Fuel Natural gas only, not convertible to liquid propane
Capacity 40,000 - 100,000 BTUH
AESTHETICS
Profile 4-way multipoise
Construction Galvanized steel
Paint Baked-on urethane base coat and polyester top coat
Bryant reserves the right to discontinue or change any specification or design without prior notice or obligation.
LegacyTM Line Fixed-Speed 80% Efficiency Gas Furnace
Model: 310A
- Product Line: Gas furnaces - Legacy Line
- AFUE Efficiency: 80%
- AFUE Range: 80 to 84.9% AFUE
- Gas Valve Type: Single-Stage
- Proposition 65 Product Warnings: 343824-2 Lead and Lead Compounds
- QuieTech™ noise reduction system
- Pilot-free PerfectLight™ ignition
- Insulated cabinet for quieter operation
- 20-year limited warranty on heat exchanger1
- 10-year parts limited warranty upon timely registration2
1To the original owner, when product is used in an owner-occupied residence, a 20-year heat exchanger parts limited warranty upon timely registration of your new equipment. See warranty certificate for details
2To the original owner, when product is used in an owner-occupied residence, a 10-year parts limited warranty upon timely registration of your new equipment. Warranty period is 5 years if not registered within 90 days. Jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive a 10-year parts limited warranty. See warranty certificate for complete details.
EFFICIENCY MANAGEMENT
Gas Efficiency 80% AFUE
Hybrid Heat® system capable Allows gas furnace/heat pump system combinations for best heating efficiencies
CONVENIENCES
Filter cabinet Allows easier filter changes
TECHNOLOGY
Blower Motor Fixed-speed
Primary Heat Exchanger Aluminized steel
Secondary Heat Exchange Fin-and-tube stainless steel
Gas Valve Single-stage
Fuel Natural gas, convertible to liquid propane (LP)
Capacity 44,000 - 154,000 BTUH
AESTHETICS
Profile 4-way multipoise
Construction Galvanized steel
Paint Baked-on urethane base coat and polyester top coat
Bryant reserves the right to discontinue or change any specification or design without prior notice or obligation.
LegacyTM Line Fixed-Speed 80% Efficiency Gas Furnace
Model: 311A
- Product Line: Gas furnaces - Legacy Line
- AFUE Efficiency: 80%
- AFUE Range: 80 to 84.9% AFUE
- Gas Valve Type: Single-Stage
- Proposition 65 Product Warnings: 343824-2 Lead and Lead Compounds
- Fan On Plus™ technology lets you choose the speed of continuous fan operation with a compatible control
- QuieTech™ noise reduction system
- Pilot-free PerfectLight™ ignition
- Insulated cabinet for quieter operation
- 20-year limited warranty on heat exchanger1
- 10-year parts limited warranty upon timely registration2
1To the original owner, when product is used in an owner-occupied residence, a 20-year heat exchanger parts limited warranty upon timely registration of your new equipment. See warranty certificate for details
2To the original owner, when product is used in an owner-occupied residence, a 10-year parts limited warranty upon timely registration of your new equipment. Warranty period is 5 years if not registered within 90 days. Jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive a 10-year parts limited warranty. See warranty certificate for complete details.
EFFICIENCY MANAGEMENT
Gas Efficiency 80% AFUE
Hybrid Heat® system capable Allows gas furnace/heat pump system combinations for best heating efficiencies
CONVENIENCES
Filter cabinet Allows easier filter changes
TECHNOLOGY
Blower Motor Fixed-speed
Primary Heat Exchanger Aluminized steel
Secondary Heat Exchange Fin-and-tube stainless steel
Gas Valve Single-stage
Fuel Natural gas, convertible to liquid propane (LP)
Capacity 44,000 - 154,000 BTUH
AESTHETICS
Profile 4-way multipoise
Construction Galvanized steel
Paint Baked-on urethane base coat and polyester top coat
Bryant reserves the right to discontinue or change any specification or design without prior notice or obligation.
Legacy™ Line Fixed-Speed 90+% Efficiency Gas Furnace
Model: 912S
- Product Line: Gas furnaces - Legacy Line
- AFUE Efficiency: up to 92.1%
- AFUE Range: 90 to 94.9% AFUE
- Gas Valve Type: Single-Stage
- Proposition 65 Product Warnings: 343824-2 Lead and Lead Compounds
- Stay comfortable with efficient heating all winter long: up to 92.1% AFUE
- PerfectLight™ hot surface igniter eliminates gas-wasting pilot light
- Insulated cabinet for quieter operation
- 20-year limited warranty on heat exchanger1
- 10-year parts limited warranty upon registration2
1To the original owner, when product is used in an owner-occupied residence, a 20-year heat exchanger parts limited warranty upon timely registration of your new equipment. See warranty certificate for details
2To the original owner, when product is used in an owner-occupied residence, a 10-year parts limited warranty upon timely registration of your new equipment. Warranty period is 5 years if not registered within 90 days. Jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive a 10-year parts limited warranty. See warranty certificate for complete details.
EFFICIENCY MANAGEMENT
Gas Efficiency Up to 92.1% AFUE
Hybrid Heat® system capable Allows gas furnace/heat pump system combinations for best heating efficiencies
CONVENIENCES
Filter cabinet Allows easier filter changes
TECHNOLOGY
QuietTech™ Sound-reducing technology
Blower Motor Fixed-speed
Primary Heat Exchanger Corrosion-resistant clamshell design of aluminized steel
Secondary Heat Exchange Fin-and-tube stainless steel
Gas Valve Single-stage
Igniter PerfectLight™ hot surface igniter (pilot-free)
Fuel Natural gas, convertible to liquid propane (LP)
Capacity 40,000 - 120,000 BTUH
AESTHETICS
Profile 4-way multipoise
Construction Galvanized steel
Paint Baked-on urethane base coat and polyester top coat
Bryant reserves the right to discontinue or change any specification or design without prior notice or obligation.
Legacy™ Line Fixed-Speed 90+% Efficiency Gas Furnace
Model: 915S
- Product Line: Gas furnaces - Legacy Line
- Energy Star® Qualified: Some sizes qualified
- AFUE Efficiency: Up to 96.5%
- AFUE Range: 95% AFUE
- Gas Valve Type: Single-Stage
- Proposition 65 Product Warnings: 343824-2 Lead and Lead Compounds
- Stay comfortable with efficient heating all winter long: Up to 96.5%
- PerfectLight™ hot surface igniter eliminates gas-wasting pilot light
- Perfect Humidity® technology removes more moisture than a standard furnace during cooling operation (when installed with a matched air conditioner or heat pump)
- Insulated cabinet for quieter operation
- Lifetime limited warranty on heat exchanger1
- 10-year parts limited warranty upon registration2
1To the original owner, when product is used in an owner-occupied residence, a Lifetime heat exchanger parts limited warranty upon timely registration of your new equipment. Warranty period is reduced to 20-years (from Lifetime) on heat exchanger if not registered within 90 days. Jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive the extended registered heat exchanger parts limited warranty period. See warranty certificate for details
2To the original owner, when product is used in an owner-occupied residence, a 10-year parts limited warranty upon timely registration of your new equipment. Warranty period is 5 years if not registered within 90 days. Jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive a 10-year parts limited warranty. See warranty certificate for complete details.
EFFICIENCY MANAGEMENT
Gas Efficiency Up to 96.5%
Hybrid Heat® system capable Allows gas furnace/heat pump system combinations for best heating efficiencies
CONVENIENCES
Filter cabinet Allows easier filter changes
TECHNOLOGY
QuietTech™ Sound-reducing technology
Blower Motor Fixed-speed
Primary Heat Exchanger Corrosion-resistant clamshell design of aluminized steel
Secondary Heat Exchange Fin-and-tube stainless steel
Gas Valve Single-stage
Igniter PerfectLight™ hot surface igniter (pilot-free)
Fuel Natural gas, convertible to liquid propane (LP)
Capacity 26,000 - 135,000 BTUH
AESTHETICS
Profile 4-way multipoise
Construction Galvanized steel
Paint Baked-on urethane base coat and polyester top coat
Bryant reserves the right to discontinue or change any specification or design without prior notice or obligation.
Preferred™ 80 Series Variable-Speed Gas Furnace
Model: 820TA
- Product Line: Gas Furnaces - Preferred Series
- AFUE Efficiency: 80%
- AFUE Range: 80 to 84.9% AFUE
- Gas Valve Type: Two-Stage
- Proposition 65 Product Warnings: 343824-2 Lead and Lead Compounds
- Quiet performance and even-temperature comfort from variable-speed air delivery
- Two-stage operation allows longer, more even heating cycles on low stage
- Perfect Heat® technology means consistent comfort by adjusting system operation to changing conditions
- Fan On Plus™ technology lets you choose the speed of continuous fan operation with a compatible control
- Insulated cabinet for quieter operation
- Low NOx models available (821TA)
- 20-year limited warranty on heat exchanger3
- 10-year parts limited warranty upon registration upon timely registration2
1To the original owner, when product is used in an owner-occupied residence, a 20-year heat exchanger parts limited warranty upon timely registration of your new equipment. See warranty certificate for details
2To the original owner, when product is used in an owner-occupied residence, a 10-year parts limited warranty upon timely registration of your new equipment. Warranty period is 5 years if not registered within 90 days. Jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive a 10-year parts limited warranty. See warranty certificate for complete details.
320-Year Heat Exchanger Limited Warranty. When used in an owner-occupied residence. See warranty certificate for details.
EFFICIENCY MANAGEMENT
Gas Efficiency 80% AFUE
Heating stages Two-stage operation for efficiency and comfort
Summer savings Capable of improving SEER (energy efficiency) during cooling season with properly matched cooling system components
Hybrid Heat® system capable Allows gas furnace/heat pump system combinations for best heating efficiencies
CONVENIENCES
Filter cabinet Allows easier filter changes
TECHNOLOGY
SmartEvap™ technology Provides additional summer duhumidification as a part of your air conditioning system
Blower Motor Variable speed, high-efficiency ECM
Primary Heat Exchanger Aluminized steel
Gas Valve Two-stage
Igniter PerfectLight™ hot surface igniter (pilot-free)
Fuel Natural gas, convertible to liquid propane (LP)
Capacity 45,000 - 135,000 BTUH
AESTHETICS
Profile 4-way multipoise
Construction Galvanized steel
Paint Baked-on urethane base coat and polyester top coat
Bryant reserves the right to discontinue or change any specification or design without prior notice or obligation.
Preferred™ 80 Series Variable-Stage Gas Furnace
Model: 820SA
- Product Line: Gas Furnaces - Preferred Series
- AFUE Efficiency: 80%
- AFUE Range: 80 to 84.9% AFUE
- Gas Valve Type: Single-Stage
- Proposition 65 Product Warnings: 343824-2 Lead and Lead Compounds
- Quiet performance and even-temperature comfort from variable-speed air delivery
- Insulated cabinet for quieter operation
- 20-year limited warranty on heat exchanger1
- 10-year parts limited warranty upon timely registration2
1To the original owner, when product is used in an owner-occupied residence, a 20-year heat exchanger parts limited warranty upon timely registration of your new equipment. See warranty certificate for details
2To the original owner, when product is used in an owner-occupied residence, a 10-year parts limited warranty upon timely registration of your new equipment. Warranty period is 5 years if not registered within 90 days. Jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive a 10-year parts limited warranty. See warranty certificate for complete details.
EFFICIENCY MANAGEMENT
Gas Efficiency 80% AFUE
Heating stages Single-stage heating
Summer savings Capable of improving SEER (energy efficiency) during cooling season with properly matched cooling system components
Hybrid Heat® system capable Allows gas furnace/heat pump system combinations for best heating efficiencies
CONVENIENCES
Filter cabinet Allows easier filter changes
TECHNOLOGY
Blower Motor Variable speed, constant torque (VCT) ECM motor
Secondary Heat Exchange Fin-and-tube stainless steel
Gas Valve Single-stage
Igniter PerfectLight™ hot surface igniter (pilot-free)
Fuel Natural gas, convertible to liquid propane (LP)
Capacity 30,000 - 110,000 BTUH - model 820(1)SA
AESTHETICS
Profile 4-way multipoise
Construction Galvanized steel
Paint Baked-on urethane base coat and polyester top coat
Bryant reserves the right to discontinue or change any specification or design without prior notice or obligation.
Preferred™ Series 90+% Efficiency Gas Furnace
Model: 922S
- Product Line: Gas Furnaces - Preferred Series
- Energy Star® Qualified: Some sizes qualified in the U.S. Southern States
- AFUE Efficiency: up to 92.1%
- AFUE Range: 90 to 94.9% AFUE
- Gas Valve Type: Single-Stage
- Proposition 65 Product Warnings: 343824-2 Lead and Lead Compounds
- Experience exceptional heating efficiency: up to 92.1% AFUE
- Multi-speed blower is optimized to your home for comfort and can assist with summertime humidity control and efficiency
- Fan On Plus™ technology lets you choose the speed of continuous fan operation with a compatible control
- Insulated cabinet for quieter operation
- Lifetime limited warranty on heat exchanger1
- 10-year parts limited warranty upon registration2
1To the original owner, when product is used in an owner-occupied residence, a Lifetime heat exchanger parts limited warranty upon timely registration of your new equipment. Warranty period is reduced to 20-years (from Lifetime) on heat exchanger if not registered within 90 days. Jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive the extended registered heat exchanger parts limited warranty period. See warranty certificate for details
2To the original owner, when product is used in an owner-occupied residence, a 10-year parts limited warranty upon timely registration of your new equipment. Warranty period is 5 years if not registered within 90 days. Jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive a 10-year parts limited warranty. See warranty certificate for complete details.
EFFICIENCY MANAGEMENT
Gas Efficiency Up to 92.1% AFUE
ENERGY STAR® Model 922S meets ENERGY STAR® regional guidelines for efficiency in the U.S. South states, in select sizes
Heating stages Single-stage heating for trusted reliability
Summer savings Multi-speed units are capable of improving SEER (energy efficiency) during cooling season with properly matched cooling system components
Hybrid Heat® system capable Allows gas furnace/heat pump system combinations for best heating efficiencies
TECHNOLOGY
SmartEvap™ technology Provides additional summer duhumidification as a part of your air conditioning system
QuietTech™ Sound-reducing technology
Blower Motor Multi-speed ECM
Primary Heat Exchanger Corrosion-resistant clamshell design of aluminized steel
Secondary Heat Exchange Fin-and-tube stainless steel
Gas Valve Single-stage
Igniter PerfectLight™ hot surface igniter (pilot-free)
Fuel Natural gas, convertible to liquid propane (LP)
Capacity 40,000 - 120,000 BTUH
AESTHETICS
Profile Multi-stage, 4-way multipoise
Construction Galvanized steel
Paint Baked-on urethane base coat and polyester top coat
Bryant reserves the right to discontinue or change any specification or design without prior notice or obligation.
Preferred™ Series 90+% Efficiency Gas Furnace
Model: 925S
- Product Line: Gas Furnaces - Preferred Series
- Energy Star® Qualified: All sizes qualified
- AFUE Efficiency: up to 96.2%
- AFUE Range: 95%+ AFUE
- Gas Valve Type: Single-Stage
- Proposition 65 Product Warnings: 343824-2 Lead and Lead Compounds
- Experience exceptional heating efficiency: up to 96.2% AFUE
- Multi-speed blower is optimized to your home for comfort and can assist with summertime humidity control and efficiency
- Fan On Plus™ technology lets you choose the speed of continuous fan operation with a compatible control
- Insulated cabinet for quieter operation
- External filter cabinet makes filter changes easier
- Lifetime limited warranty on heat exchanger1
- 10-year parts limited warranty upon registration2
1To the original owner, when product is used in an owner-occupied residence, a Lifetime heat exchanger parts limited warranty upon timely registration of your new equipment. Warranty period is reduced to 20-years (from Lifetime) on heat exchanger if not registered within 90 days. Jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive the extended registered heat exchanger parts limited warranty period. See warranty certificate for details
2To the original owner, when product is used in an owner-occupied residence, a 10-year parts limited warranty upon timely registration of your new equipment. Warranty period is 5 years if not registered within 90 days. Jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive a 10-year parts limited warranty. See warranty certificate for complete details.
EFFICIENCY MANAGEMENT
Gas Efficiency Up to 96.2% AFUE
ENERGY STAR® The Model 925S meets the ENERGY STAR® guidelines for high efficiency
Heating stages Single-stage heating for trusted reliability
Summer savings Multi-speed units are capable of improving SEER (energy efficiency) during cooling season with properly matched cooling system components
Hybrid Heat® system capable Allows gas furnace/heat pump system combinations for best heating efficiencies
CONVENIENCES
Filter cabinet Allows easier filter changes
TECHNOLOGY
SmartEvap™ technology Provides additional summer duhumidification as a part of your air conditioning system
QuietTech™ Sound-reducing technology
Blower Motor Multi-speed ECM
Primary Heat Exchanger Corrosion-resistant clamshell design of aluminized steel
Secondary Heat Exchange Fin-and-tube stainless steel
Gas Valve Single-stage
Igniter PerfectLight™ hot surface igniter (pilot-free)
Fuel Natural gas, convertible to liquid propane (LP)
Capacity 26,000 - 120,000 BTUH
AESTHETICS
Profile Multi-stage, 4-way multipoise
Construction Galvanized steel
Paint Baked-on urethane base coat and polyester top coat
Bryant reserves the right to discontinue or change any specification or design without prior notice or obligation.
Preferred™ Series Multi-Speed 80% Efficiency Gas Furnace
Model: 312A
- Product Line: Gas Furnaces - Preferred Series
- AFUE Efficiency: 80%
- AFUE Efficiency Range: 80 to 84.9% AFUE
- Gas Valve Type: Single-Stage
- Two-stage operation allows longer, more even heating cycles on low stage
- Perfect Heat® technology means consistent comfort by adjusting system operation to changing conditions
- Fan On Plus™ technology lets you choose the speed of continuous fan operation with a compatible control
- Insulated cabinet for quieter operation
- 20-year limited warranty on heat exchanger1
- 10-year parts limited warranty upon registration2
1To the original owner, when product is used in an owner-occupied residence, a 20-year heat exchanger parts limited warranty upon timely registration of your new equipment. See warranty certificate for details
2To the original owner, when product is used in an owner-occupied residence, a 10-year parts limited warranty upon timely registration of your new equipment. Warranty period is 5 years if not registered within 90 days. Jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive a 10-year parts limited warranty. See warranty certificate for complete details.
EFFICIENCY MANAGEMENT
Gas Efficiency 80% AFUE
Heating stages Two-stage operation for efficiency and comfort
Hybrid Heat® system capable Allows gas furnace/heat pump system combinations for best heating efficiencies
CONVENIENCES
Filter cabinet Allows easier filter changes
TECHNOLOGY
SmartEvap™ technology Provides additional summer duhumidification as a part of your air conditioning system
QuietTech™ Sound-reducing technology
Blower Motor Fixed speed
Primary Heat Exchanger Fixed speed
Secondary Heat Exchange Fin-and-tube stainless steel
Gas Valve Two-stage
Igniter PerfectLight™ hot surface igniter (pilot-free)
Fuel Natural gas, convertible to liquid propane (LP)
Capacity 44,000 - 154,000 BTUH
AESTHETICS
Profile 4-way multipoise
Construction Galvanized steel
Paint Baked-on urethane base coat and polyester top coat
Bryant reserves the right to discontinue or change any specification or design without prior notice or obligation.
Preferred™ Series Multi-Speed 80% Efficiency Gas Furnace
Model: 313A
- Product Line: Gas Furnaces - Preferred Series
- AFUE Efficiency: 80%
- AFUE Range: 80 to 84.9% AFUE
- Gas Valve Type: Single-Stage
- Proposition 65 Product Warnings: 343824-2 Lead and Lead Compounds
- Multi-speed blower is optimized to your home for comfort and can assist with summertime humidity control and efficiency
- Insulated cabinet for quieter operation
- 20-year limited warranty on heat exchanger1
- 10-year parts limited warranty upon timely registration2
1To the original owner, when product is used in an owner-occupied residence, a 20-year heat exchanger parts limited warranty upon timely registration of your new equipment. See warranty certificate for details
2To the original owner, when product is used in an owner-occupied residence, a 10-year parts limited warranty upon timely registration of your new equipment. Warranty period is 5 years if not registered within 90 days. Jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive a 10-year parts limited warranty. See warranty certificate for complete details.
EFFICIENCY MANAGEMENT
Gas Efficiency 80% AFUE
Heating stages Single-stage heating
Summer savings Capable of improving SEER (energy efficiency) during cooling season with properly matched cooling system components
Hybrid Heat® system capable Allows gas furnace/heat pump system combinations for best heating efficiencies
CONVENIENCES
Filter cabinet Allows easier filter changes
TECHNOLOGY
QuietTech™ Sound-reducing technology
Blower Motor Multi-speed ECM
Primary Heat Exchanger Aluminized steel
Secondary Heat Exchange Fin-and-tube stainless steel
Gas Valve Single-stage
Igniter PerfectLight™ hot surface igniter (pilot-free)
Fuel Natural gas, convertible to liquid propane (LP)
Capacity 44,000 - 132,000 BTUH
AESTHETICS
Profile 4-way multipoise
Construction Galvanized steel
Paint Baked-on urethane base coat and polyester top coat
Bryant reserves the right to discontinue or change any specification or design without prior notice or obligation.
Preferred™ Series Multi-Speed 90+% Efficiency Gas Furnace
Model: 925T
- Product Line: Gas Furnaces - preferred Series
- Energy Star: All sizes qualified
- AFUE Efficiency: up to 96.2%
- AFUE Efficiency Range: 95% + AFUE
- Gas Valve Type: Two-Stage
- Experience exceptional heating efficiency: up to 96.2% AFUE
- Multi-speed blower is optimized to your home for comfort and can assist with summertime humidity control and efficiency
- Two-stage operation allows longer, more consistent heating cycles on low stage for efficiency and comfort
- Perfect Heat® technology means consistent comfort by adjusting system operation to changing conditions
- Perfect Humidity® technology capability with appropriate control and equipment removes more moisture than a standard furnace during cooling operation
- Fan On Plus™ technology lets you choose the speed of continuous fan operation with a compatible control
- Insulated cabinet for quieter operation
- External filter cabinet makes filter changes easier
- Lifetime limited warranty on heat exchanger1
- 10-year parts limited warranty upon registration2
1To the original owner, when product is used in an owner-occupied residence, a Lifetime heat exchanger parts limited warranty upon timely registration of your new equipment. Warranty period is reduced to 20-years (from Lifetime) on heat exchanger if not registered within 90 days. Jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive the extended registered heat exchanger parts limited warranty period. See warranty certificate for details
2To the original owner, when product is used in an owner-occupied residence, a 10-year parts limited warranty upon timely registration of your new equipment. Warranty period is 5 years if not registered within 90 days. Jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive a 10-year parts limited warranty. See warranty certificate for complete details.
EFFICIENCY MANAGEMENT
Gas Efficiency Up to 96.2% AFUE
ENERGY STAR® Model 925T meets ENERGY STAR® guidelines for high efficiency in all sizes.
Heating stages Two-stage operation for efficiency and comfort
Summer savings Multi-speed units are capable of improving SEER (energy efficiency) during cooling season with properly matched cooling system components
Hybrid Heat® system capable Allows gas furnace/heat pump system combinations for best heating efficiencies
TECHNOLOGY
SmartEvap™ technology Provides additional summer duhumidification as a part of your air conditioning system
QuietTech™ Sound-reducing technology
Blower Motor Multi-speed ECM
Primary Heat Exchanger Corrosion-resistant clamshell design of aluminized steel
Secondary Heat Exchange Fin-and-tube stainless steel
Gas Valve Two-stage
Igniter PerfectLight™ hot surface igniter (pilot-free)
Fuel Natural gas, convertible to liquid propane (LP)
Capacity 40,000 - 120,000 BTUH
AESTHETICS
Profile Multi-stage, 4-way multipoise
Construction Galvanized steel
Paint Baked-on urethane base coat and polyester top coat
Bryant reserves the right to discontinue or change any specification or design without prior notice or obligation.
Preferred™ Series Variable-Speed 80% Efficiency Gas Furnace
Model: 314A
- Product Line: Gas Furnaces - Preferred Series
- AFUE Efficiency: 80%
- AFUE Range: 80 to 84.9% AFUE
- Gas Valve Type: Two-Stage
- Proposition 65 Product Warnings: 343824-2 Lead and Lead Compounds
- Quiet performance and even-temperature comfort from variable-speed air delivery
- Two-stage operation allows longer, more even heating cycles on low stage
- Perfect Heat® technology means consistent comfort by adjusting system operation to changing conditions
- Fan On Plus™ technology lets you choose the speed of continuous fan operation with a compatible control
- Insulated cabinet for quieter operation
- 20-year limited warranty on heat exchanger1
- 10-year parts limited warranty upon timely registration2
1To the original owner, when product is used in an owner-occupied residence, a 20-year heat exchanger parts limited warranty upon timely registration of your new equipment. See warranty certificate for details
2To the original owner, when product is used in an owner-occupied residence, a 10-year parts limited warranty upon timely registration of your new equipment. Warranty period is 5 years if not registered within 90 days. Jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive a 10-year parts limited warranty. See warranty certificate for complete details.
EFFICIENCY MANAGEMENT
Gas Efficiency 80% AFUE
Heating stages Two-stage operation for efficiency and comfort
Summer savings Capable of improving SEER (energy efficiency) during cooling season with properly matched cooling system components
Hybrid Heat® system capable Allows gas furnace/heat pump system combinations for best heating efficiencies
CONVENIENCES
Filter cabinet Allows easier filter changes
TECHNOLOGY
SmartEvap™ technology Provides additional summer duhumidification as a part of your air conditioning system
QuietTech™ Sound-reducing technology
Blower Motor Variable speed, high-efficiency ECM
Primary Heat Exchanger Aluminized steel
Secondary Heat Exchange Fin-and-tube stainless steel
Gas Valve Two-stage
Igniter PerfectLight™ hot surface igniter (pilot-free)
Fuel Natural gas, convertible to liquid propane (LP)
Capacity 45,000 - 135,000 BTUH - model 314A
AESTHETICS
Profile 4-way multipoise
Construction Galvanized steel
Paint Baked-on urethane base coat and polyester top coat
Bryant reserves the right to discontinue or change any specification or design without prior notice or obligation.
Boilers
Legacy™ Line BS2 Boiler
Model: BS2
- Product Line: Boilers - Legacy Series
- Fuel Type: Gas
- Energy Star® Qualified: Not qualified
- AFUE Efficiency: up to 82.7
- AFUE Range: 80 to 84.9% AFUE
- Proposition 65 Product Warnings: 343824-2 Lead and Lead Compounds
- Up to 82.7% AFUE
- Cast iron heat exchanger
- Gas-fired models
- Water or steam models
- Standard standing pilot or optional electronic ignition
- Electric vent damper
- Stainless steel/titanium alloy composite burners
- Compact design
- 5-year parts limited warranty and a 12-year parts limited warranty on heat exchanger section1
1 To the original owner, the Bryant BW9A boiler is covered by a 5-year parts limited warranty and a 15-year parts limited warranty on the heat exchanger section. Ask your Bryant dealer about optional extended warranties, which may include labor. See warranty certificate at bryant.com for complete details.
PERFORMANCE
Energy Efficiency 80.4% - 82.7% AFUE
Rated Heating Input 75,000 - 299,000 BTUH
Rated Heating Capacity 62,000 - 245,000 BTUH
Heat Format Steam
CONTROLS
Control Type Integrated boiler control
TECHNOLOGY
Heat Exchanger Cast iron
Burners Titanium composite
Ignition Electronic
Vent damper Standard electric
Fuel Gas
AESTHETICS
Casing Full fiberglass insulation
Section Seals Cast iron push nipples
Bryant reserves the right to discontinue or change any specification or design without prior notice or obligation.
Legacy™ Line BWB Boiler
Model: BWB
- AFUE Efficiency: 82%
- AFUE Range: 80 to 84.9% AFUE
- Energy Star® Qualified: Not qualified
- Fuel Type: Gas
- Product Line: Boilers - Legacy Series
- Proposition 65 Product Warnings: 343824-2 Lead and Lead Compounds
- 82.0% AFUE
- Cast iron heat exchanger
- Gas-fired models
- Integrated boiler control
- Titanium composite burners
- Swing burner door
- 10-year parts limited warranty and a 20-year parts limited warranty on heat exchanger section1
1 To the original owner, the Bryant BW boiler is covered by a 10-year parts limited warranty and a 20-year parts limited warranty on the heat exchanger section. Ask your Bryant dealer about optional extended warranties, which may include labor. See warranty certificate at bryant.com for complete details.
PERFORMANCE
Energy Efficiency 82.0% AFUE
Rated Heating Input 45,000 - 295,000 BTUH
Rated Heating Capacity 37,000 - 242,000 BTUH
Heat Format Water
CONTROLS
Control Type Integrated boiler control
TECHNOLOGY
Heat Exchanger Cast iron
Burners Titanium composite
Ignition Electronic
Vent damper Standard electric
Fuel Gas
AESTHETICS
Casing Full fiberglass insulation
Section Seals Cast iron push nipples
Bryant reserves the right to discontinue or change any specification or design without prior notice or obligation.
Preferred™ Series BW3 Boiler
Model: BW3
- Product Line: Boilers - Preferred series
- AFUE Efficiency: up to 84.4%
- Fuel Type: Gas
- AFUE Range: 80 to 84.9% AFUE
- Energy Star® Qualified: Not qualified
- Proposition 65 Product Warnings: 343824-2 Lead and Lead Compounds
- Up to 84.4% AFUE
- Cast iron heat exchanger
- Gas-fired models
- Stainless steel/titanium alloy composite burners
- Fiberglass insulated casing
- Small, compact design
- 5-year parts limited warranty and a 20-year parts limited warranty on heat exchanger section1
1 To the original owner, the Bryant BW boiler is covered by a 5-year parts limited warranty and a 20-year parts limited warranty on the heat exchanger section. Ask your Bryant dealer about optional extended warranties, which may include labor. See warranty certificate at bryant.com for complete details.
PERFORMANCE
Energy Efficiency Up to 84.4% AFUE
Rated Heating Input 45,500 - 225,000 BTUH
Rated Heating Capacity 36,000 -186,000 BTUH
Heat Format Water
CONTROLS
Control Type Integrated boiler control
TECHNOLOGY
Heat Exchanger Cast iron
Burners Titanium composite
Ignition Intermittent pilot
Vent damper Induced-draft
Fuel Gas
AESTHETICS
Casing Full fiberglass insulation
SectionSeals Cast iron push nipples
Bryant reserves the right to discontinue or change any specification or design without prior notice or obligation.
Preferred™ Series BW4 Boiler
Model: BW4
- AFUE Efficiency: up to 86.5%
- AFUE Range: 85 to 90.9% AFUE
- Fuel Type: Oil
- Product Line: Boilers - Preferred Series
- Proposition 65 Product Warnings: 343824-2 Lead and Lead Compounds
- Oil fuel
- Up to 86.5% AFUE
- Sectional cast-iron design
- Cast-iron heat exchanger
- Small compact design
- Swing burner door
- 5-year parts limited warranty and a 20-year parts limited warranty on heat exchanger section1
1 To the original owner, the Bryant BW boiler is covered by a 5-year parts limited warranty and a 20-year parts limited warranty on the heat exchanger section. Ask your Bryant dealer about optional extended warranties, which may include labor. See warranty certificate at bryant.com for complete details.
PERFORMANCE
Energy Efficiency Up to 86.5% AFUE
Rated Heating Input 91,000 - 245,000 BTUH
Rated Heating Capacity 80,000 - 209,000 BTUH
Heat Format Water
CONTROLS
Control Type Integrated boiler control
TECHNOLOGY
Heat Exchanger Cast iron
Burners Oil (Beckett or Riello)
Ignition Spark
Venting Barometric
Fuel Oil
AESTHETICS
Casing Full fiberglass insulation
SectionSeals Cast iron push nipples
Bryant reserves the right to discontinue or change any specification or design without prior notice or obligation.
Preferred™ Series BW5 Boiler
Model: BW5
- AFUE Efficiency: up to 86.5%
- AFUE Range: 85 to 90.9% AFUE
- Fuel Type: Oil
- Product Line: Boilers - Preferred Series
- Proposition 65 Product Warnings: 343824-2 Lead and Lead Compounds
- Oil fuel
- Up to 86.5% AFUE
- Tankless heater coil
- Sectional cast-iron design
- Cast-iron heat exchanger
- Small compact design
- Swing burner door
- 5-year parts limited warranty and a 20-year parts limited warranty on heat exchanger section1
1 To the original owner, the Bryant BW boiler is covered by a 5-year parts limited warranty and a 20-year parts limited warranty on the heat exchanger section. Ask your Bryant dealer about optional extended warranties, which may include labor. See warranty certificate at bryant.com for complete details.
PERFORMANCE
Energy Efficiency Up to 86.5% AFUE
Rated Heating Input 91,000 - 245,000 BTUH
Rated Heating Capacity 80,000 - 209,000 BTUH
Heat Format Water
CONTROLS
Control Type Integrated boiler control
TECHNOLOGY
Heat Exchanger Cast iron
Burners Oil (Beckett or Riello)
Domestic water 2.90 - 4.25 gallons per minute (GPM)
Ignition Spark
Vent damper Barometric
Fuel Oil
AESTHETICS
Casing Full fiberglass insulation
SectionSeals Cast iron push nipples
Bryant reserves the right to discontinue or change any specification or design without prior notice or obligation.
Preferred™ Series BW9 Boiler
Model: BW9
- AFUE Efficiency: 90%
- AFUE Range: 90 to 94.9% AFUE
- Energy Star® Qualified: All sizes qualified
- Fuel Type: Gas
- Product Line: Boilers - Preferred Series
- Proposition 65 Product Warnings: 343824-2 Lead and Lead Compounds
- 90% AFUE
- Gas-fired
- Integrated boiler control
- Cast-aluminum heat exchanger
- Optional PVC pipe installation
- 10-year parts limited warranty and a 15-year parts limited warranty on heat exchanger section1
1 To the original owner, the Bryant BW9A boiler is covered by a 10-year parts limited warranty and a 15-year parts limited warranty on the heat exchanger section. Ask your Bryant dealer about optional extended warranties, which may include labor. See warranty certificate at bryant.com for complete details.
PERFORMANCE
Energy Efficiency 90% AFUE
Rated Heating Input 50,000 - 200,000 BTUH
Rated Heating Capacity 45,000 - 180,000 BTUH
Heat Format Water
ENERGY STAR®
Details Meets ENERGY STAR® guidelines for efficiency
CONTROLS
Control Type Integrated boiler control
TECHNOLOGY
Heat Exchanger Cast aluminum
Burners Pre-mix
Ignition Hot surface
Venting Direct
Fuel Gas
AESTHETICS
Casing Full fiberglass insulation
SectionSeals Cast iron push nipples
Bryant reserves the right to discontinue or change any specification or design without prior notice or obligation.
Preferred™ Series BWM Boiler
Model: BWM
- AFUE Efficiency: up to 95%
- AFUE Range: 95%+ AFUE
- Energy Star® Qualified: All sizes qualified
- Fuel Type: Gas
- Product Line: Boilers - Preferred Series
- Proposition 65 Product Warnings: 343824-2 Lead and Lead Compounds
- Up to 95% AFUE
- Modulating
- Gas-fired
- Integrated boiler control
- Stainless steel heat exchanger
- Built in primary/secondary piping
- 15-year heat exchanger limited parts warranty and 10-year limited parts warranty with timely registration1
1 To the original owner, the Bryant BWM boiler is covered by a 15-year heat exchanger limited parts warranty and 10-year limited parts warranty with timely registration. Ask your Bryant dealer about optional extended warranties, which may include labor. See warranty certificate at bryant.com for complete details.
PERFORMANCE
Energy Efficiency Up to 95% AFUE
Rated Heating Input 50,000 - 299,000 BTUH
Rated Heating Capacity 46,000 - 273,000 BTUH
Heat Format Water
ENERGY STAR®
Details Meets ENERGY STAR® guidelines for efficiency
CONTROLS
Control Type Integrated boiler control
TECHNOLOGY
Heat Exchanger Stainless Steel
Burners Pre-mix
Ignition Direct Spark
Venting Direct
Fuel Gas
AESTHETICS
Casing Full fiberglass insulation
SectionSeals Cast iron push nipples
Bryant reserves the right to discontinue or change any specification or design without prior notice or obligation.
